Plastic Deck Fillers, Flip Top
Plastic Deck Fillers, Flip Top
Use left and right arrow keys to navigate between tabs.

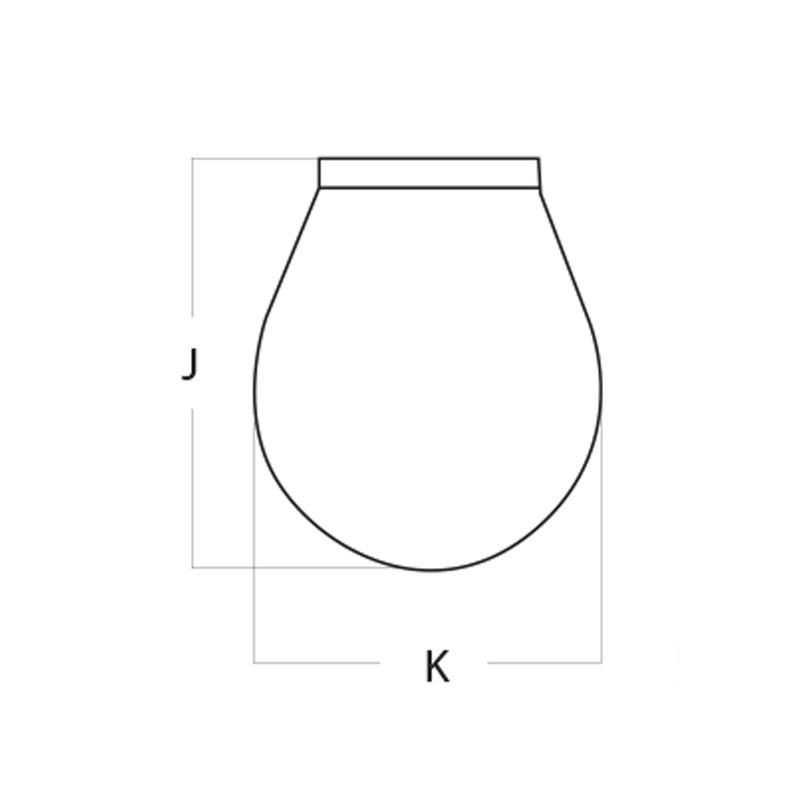

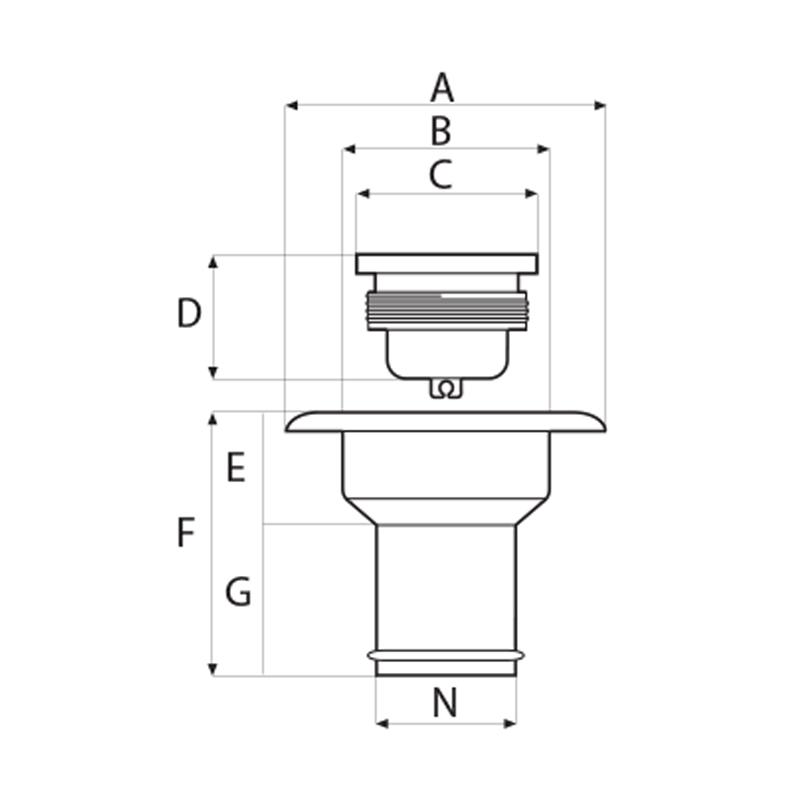

| Code | Description | Model | ØB | ØC | E | A | D | F | G | J | K | Hose Diameter | ØN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![[196265] Plastic Deck Filler Ø38mm for Fuel, Flip Top image](https://www.nuovarade.com/images/items/itm_196275_196265_268.jpg)
|
Plastic Deck Filler Ø38mm for Fuel, Flip Top | Fuel | 55mm | 48mm | 26mm | 80x93 | 33mm | 72mm | 46mm | 98mm | 84mm | 38 (1½”) | 38mm |
|
|
Plastic Deck Filler Ø51mm for Fuel, Flip Top | Fuel | 55mm | 48mm | 72mm | 80x93 | 33mm | 72mm | 46mm | 98mm | 84mm | 51 (2”) | 51mm |
|
|
Plastic Deck Filler Ø38mm for Diesel, Flip Top | Diesel | 55mm | 48mm | 72mm | 80x93 | 33mm | 72mm | 46mm | 98mm | 84mm | 38 (1½”) | 38mm |
|
|
Plastic Deck Filler Ø51mm for Diesel, Flip Top | Diesel | 55mm | 48mm | 26mm | 80x93 | 33mm | 72mm | 46mm | 98mm | 84mm | 51 (2”) | 51mm |
|
|
Plastic Deck Filler Ø38mm for Water, Flip Top | Water | 55mm | 48mm | 26mm | 80x93 | 33mm | 72mm | 46mm | 98mm | 84mm | 51 (2”) | 38mm |
