ERCOLE Fuel Tanks
ERCOLE Fuel Tanks
ERCOLE line of horizontal fuel tanks is made of polyethylene material in black colour to avoid rust and has a longer lifetime, contrary to metal tanks. This line consists of a full range of 9 models complying with international standards and is used for fuel collection and storage. All contain a fuel output for Ø8mm hose and a fuel supply input that is either threaded with a cap, either with a vertical outlet for Ø38mm hose, either with an 45o-angled outlet for Ø38mm hose. Pre-cut for tank level sensor
CE approved according to Directive 2003/44/EC.
For customized solutions (color or dimensions) please contact the Nuova Rade R&D team.
Use left and right arrow keys to navigate between tabs.
| Code | Description | Length | Width | Height | Capacity | Connector | Type | Deck Filler |
|---|---|---|---|---|---|---|---|---|

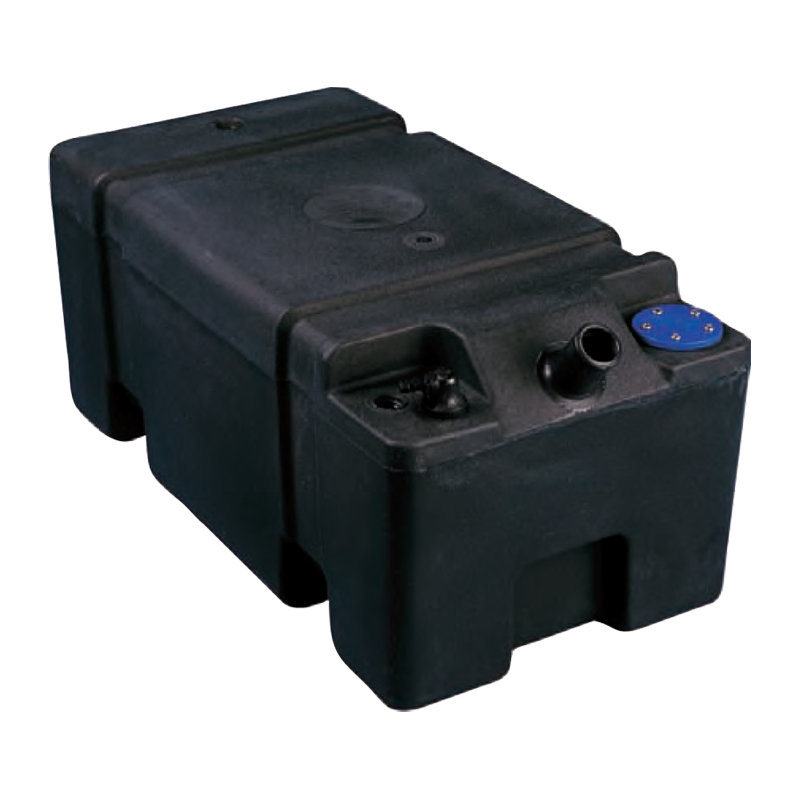

![[35008] ERCOLE Tank Fuel 55lt w/o Cap, 45° Deckfill, L.650mm image](https://www.nuovarade.com/images/items/itm_35008_50196_50206.jpg)
|
ERCOLE Tank Fuel 55lt w/o Cap, 45° Deckfill, L.650mm | 650mm | 350mm | 300mm | 55lt | 8mm | Without cap | 45o Ø 35mm |

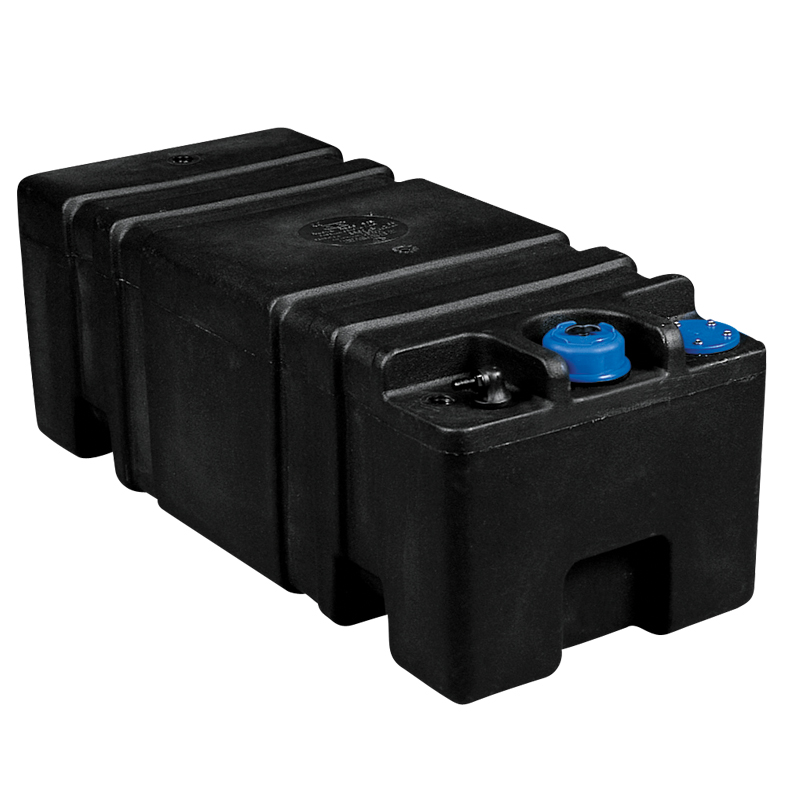

![[44797] ERCOLE Tank Fuel 41lt w/Filler Cap Threaded, L.500mm image](https://www.nuovarade.com/images/items/itm_44797_44799_44801.jpg)
|
ERCOLE Tank Fuel 41lt w/Filler Cap Threaded, L.500mm | 500mm | 350mm | 300mm | 41lt | 8mm | With filler cap | Thread Ø 50mm |
|
|
ERCOLE Tank Fuel 55lt w/Filler Cap Threaded, L.650mm | 650mm | 350mm | 300mm | 55lt | 8mm | With filler cap | Thread Ø 50mm |
|
|
ERCOLE Tank Fuel 69lt w/Filler Cap Threaded, L.800mm | 800mm | 350mm | 300mm | 69lt | 8mm | With filler cap | Thread Ø 50mm |

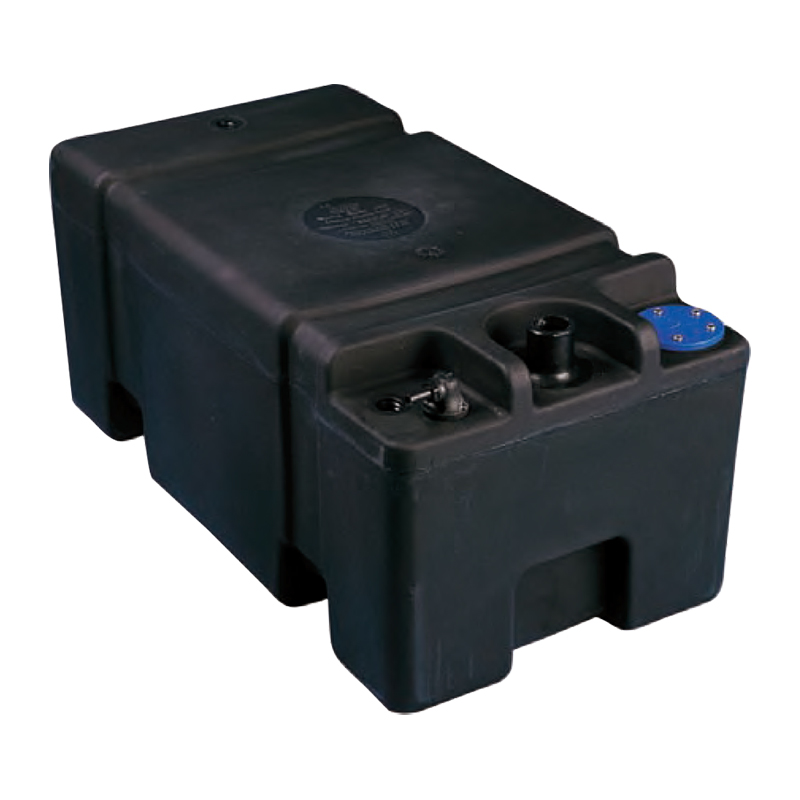

![[50195] ERCOLE Tank Fuel 41lt w/o Cap, Str.Deckfill, L.500mm image](https://www.nuovarade.com/images/items/itm_50195_50199_50205.jpg)
|
ERCOLE Tank Fuel 41lt w/o Cap, Str.Deckfill, L.500mm | 500mm | 350mm | 300mm | 41lt | 8mm | Without cap | Straight Ø 38mm |
|
|
ERCOLE Tank Fuel 41lt w/o Cap, 45° Deckfill, L.500mm | 500mm | 350mm | 300mm | 41lt | 8mm | Without cap | 45o Ø 35mm |
|
|
ERCOLE Tank Fuel 55lt w/o Cap, Str.Deckfill, L.650mm | 650mm | 350mm | 300mm | 55lt | 8mm | Without cap | Straight Ø 38mm |
|
|
ERCOLE Tank Fuel 69lt w/o Cap, Str.Deckfill, L.800mm | 800mm | 350mm | 300mm | 69lt | 8mm | Without cap | Straight Ø 38mm |
|
|
ERCOLE Tank Fuel 69lt w/o Cap, 45° Deckfill, L.800mm | 800mm | 350mm | 300mm | 69lt | 8mm | Without cap | 45o Ø 35mm |
- Manuals
- Instructions Manual "ERCOLE 40"
- Instructions Manual "ERCOLE 51"
- Instructions Manual "ERCOLE 65"
- Approvals
- CE Type Certificate - Fuel Tank "ERCOLE"
- Optional Fittings, Connectors & Sensors
- Fittings_Connectors included and optional_Ercole tanks
- Optional Sensors for ERCOLE Tanks
