Thru-Hulls with Flush Flange and Hose Barb
Polyamide

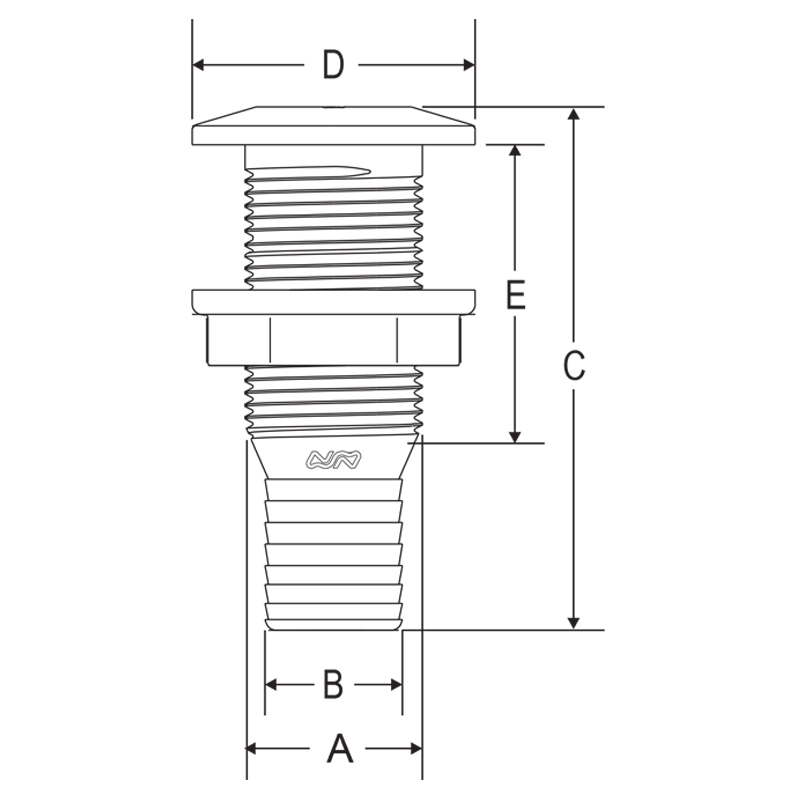

*Thread ØA According to BSP thread dimensions
| Code | Description | Colour | ØA | ØB | C | ØD | E | Material | Features |
|---|---|---|---|---|---|---|---|---|---|
![[] Thru-Hull Fitting 1/2'', w/Hose Barb Ø13mm, White image](https://www.nuovarade.com/images/items/itm_44696_44705_44714_44723_44729_44735_47762_763.jpg)
|
Thru-Hull Fitting 1/2'', w/Hose Barb Ø13mm, White | White | 1/2'' inch | 14 mm | 85 mm | 40 mm | 39 mm | - | - |

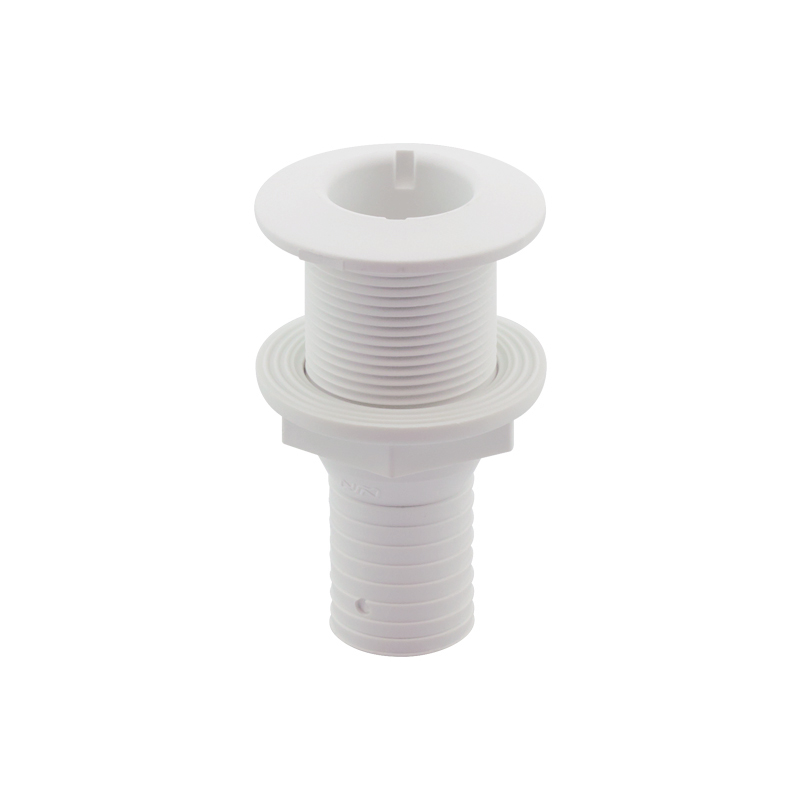

![[] Thru-Hull Fitting 1 1/4'', w/Hose Barb Ø32mm, White image](https://www.nuovarade.com/images/items/itm_198227.jpg)
|
Thru-Hull Fitting 1 1/4'', w/Hose Barb Ø32mm, White | White | 1 1/4'' inch | 32 mm | 107 mm | 62 mm | 53 mm | - | - |

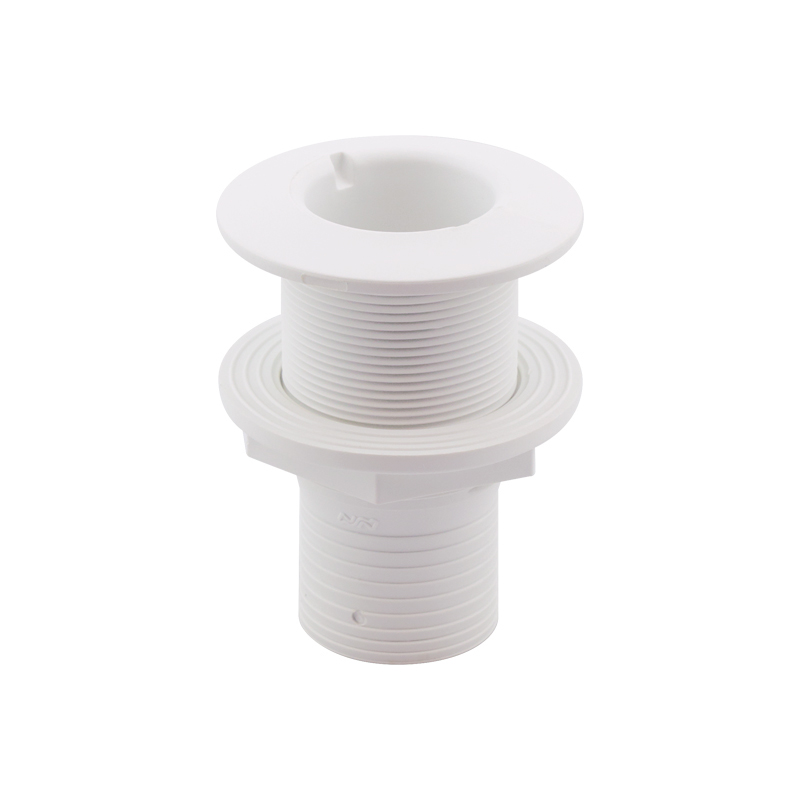

![[] Thru-Hull Fitting 2'', w/Hose Barb Ø51mm, White image](https://www.nuovarade.com/images/items/itm_198230.jpg)
|
Thru-Hull Fitting 2'', w/Hose Barb Ø51mm, White | White | 2'' inch | 51 mm | 120 mm | 90 mm | 65 mm | - | - |
|
|
Thru-Hull Fitting 5/8'', w/Hose Barb Ø15mm, White | White | 5/8'' inch | 15 mm | 75 mm | 43 mm | 40 mm | PA | - |

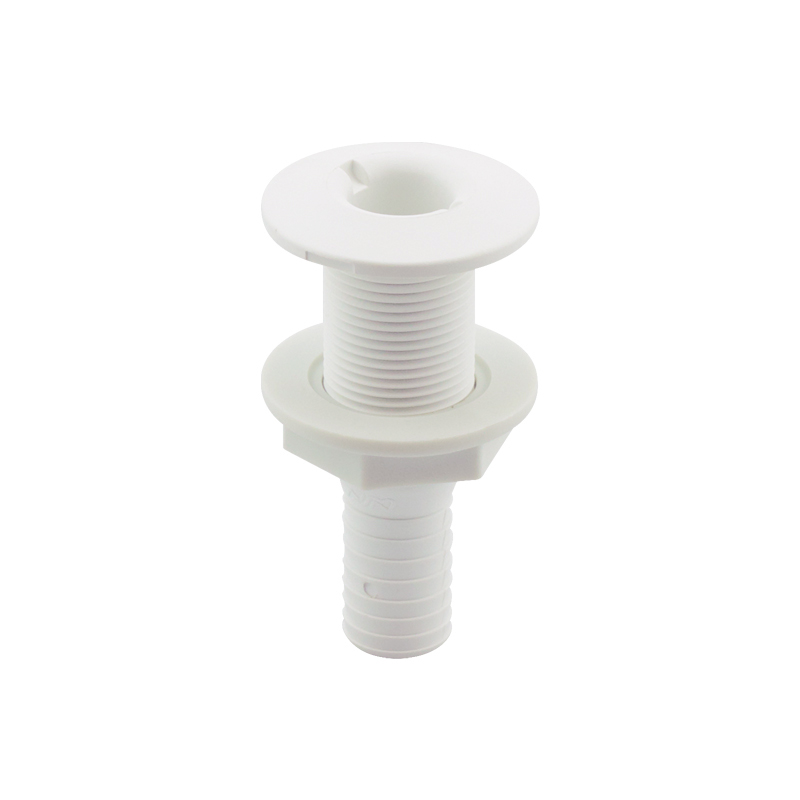

![[] Thru-Hull Fitting 3/4'', w/Hose Barb Ø19mm, White image](https://www.nuovarade.com/images/items/itm_44705.jpg)
|
Thru-Hull Fitting 3/4'', w/Hose Barb Ø19mm, White | White | 3/4'' inch | 19 mm | 88 mm | 47 mm | 45 mm | PA | - |

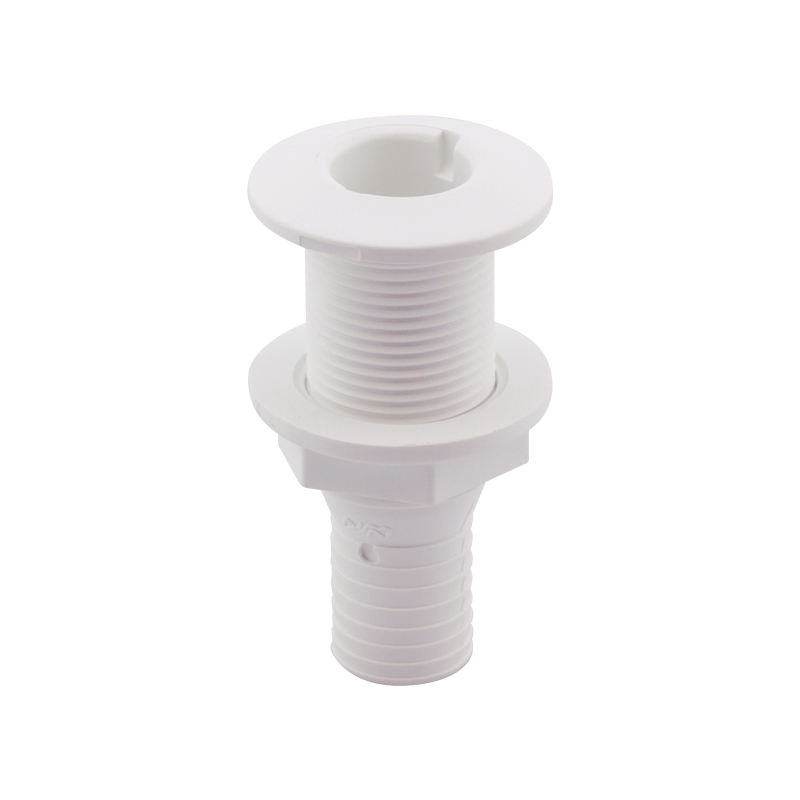

![[] Thru-Hull Fitting 1'', w/Hose Barb Ø25mm, White image](https://www.nuovarade.com/images/items/itm_44714.jpg)
|
Thru-Hull Fitting 1'', w/Hose Barb Ø25mm, White | White | 1'' inch | 25 mm | 97 mm | 52 mm | 52 mm | PA | optional plug: 45322 |

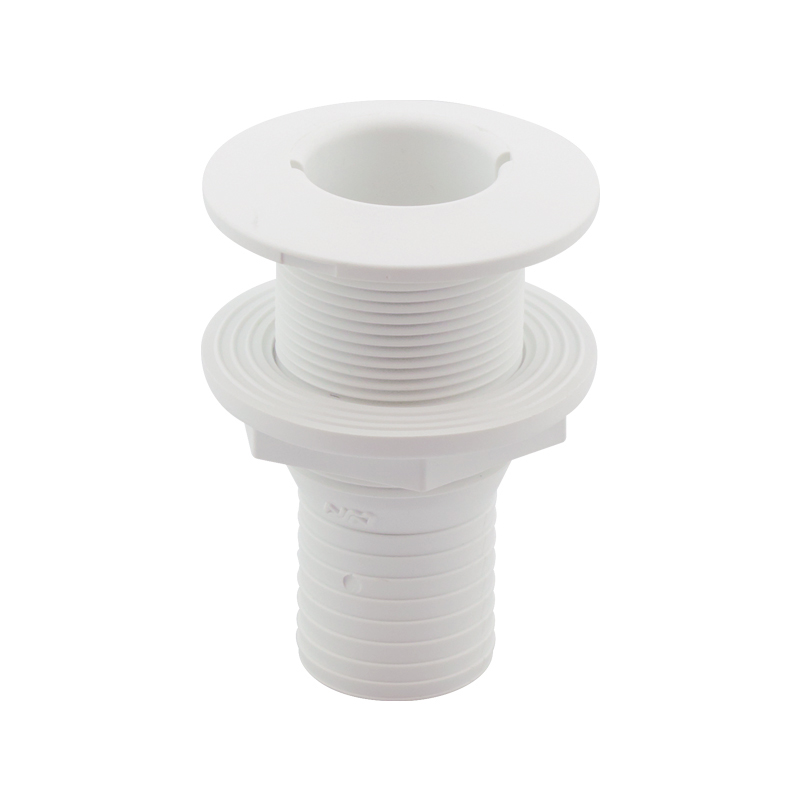

![[] Thru-Hull Fitting 1 1/2'', w/Hose Barb Ø38mm, White image](https://www.nuovarade.com/images/items/itm_44723.jpg)
|
Thru-Hull Fitting 1 1/2'', w/Hose Barb Ø38mm, White | White | 1 1/2'' inch | 38 mm | 107 mm | 75 mm | 53 mm | PA | optional plug: 45307 |
|
|
Thru-Hull Fitting 1 1/2'', w/Hose Barb Ø32mm, Thread L.55mm, White | White | 1 1/2'' inch | 32 mm | 102 mm | 76 mm | 55 mm | PA | optional plug: 45307 |
