Thru-Hulls with Displaced Hose Barb
Thru-Hulls with Displaced Hose Barb
Use left and right arrow keys to navigate between tabs.

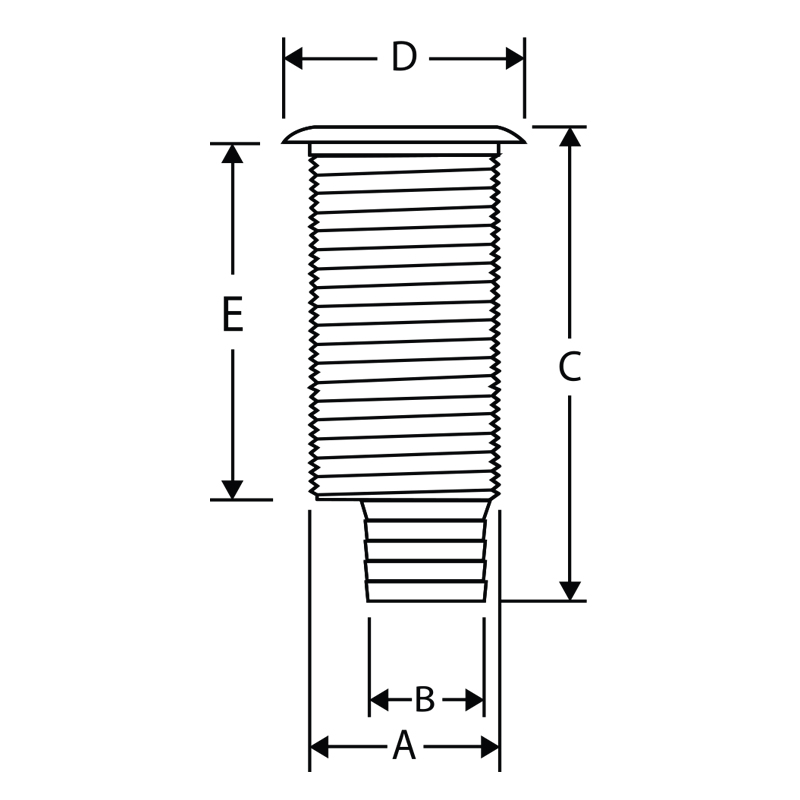

| Code | Description | Colour | ØA | ØB | Material | ØD | C | E | Optional Plug | Optional Valve |
|---|---|---|---|---|---|---|---|---|---|---|
![[196996] Thru-Hull 1 ½'', w/Displaced Hose Barb, Ø31mm, L87, White image](https://www.nuovarade.com/images/items/itm_196996_197004.jpg)
|
Thru-Hull 1 ½'', w/Displaced Hose Barb, Ø31mm, L87, White | White | 1 1/2'' inch | 31 mm | PA | 64 mm | 87 mm | 57 mm | 45312 | 197023 |
![[197000] Thru-Hull 1 ½'' w/Displ.HoseBarb Ø31mm Inox Fl. L87mm image](https://www.nuovarade.com/images/items/itm_197000_197008.jpg)
|
Thru-Hull 1 ½'' w/Displ.HoseBarb Ø31mm Inox Fl. L87mm | Inox 316 | 1 1/2'' inch | 31 mm | PA | 64 mm | 87 mm | 57 mm | 45312 | 197023 |
|
|
Thru-Hull 1 ½'', w/Displaced Hose Barb, Ø31mm, White | White | 1 1/2" inch | 31 mm | PA | 64 mm | 117 mm | 86 mm | 45312 | 197023 |
|
|
Thru-Hull 1 ½'' w/Displ.HoseBarb Ø31mm Inox Fl. L117mm | Inox 316 | 1 1/2'' inch | 31 mm | PA | 64 mm | 117 mm | 86 mm | 45312 | 197023 |
