Thru-Hulls Threaded with Hose Barb, White
Thru-Hulls Threaded with Hose Barb, White

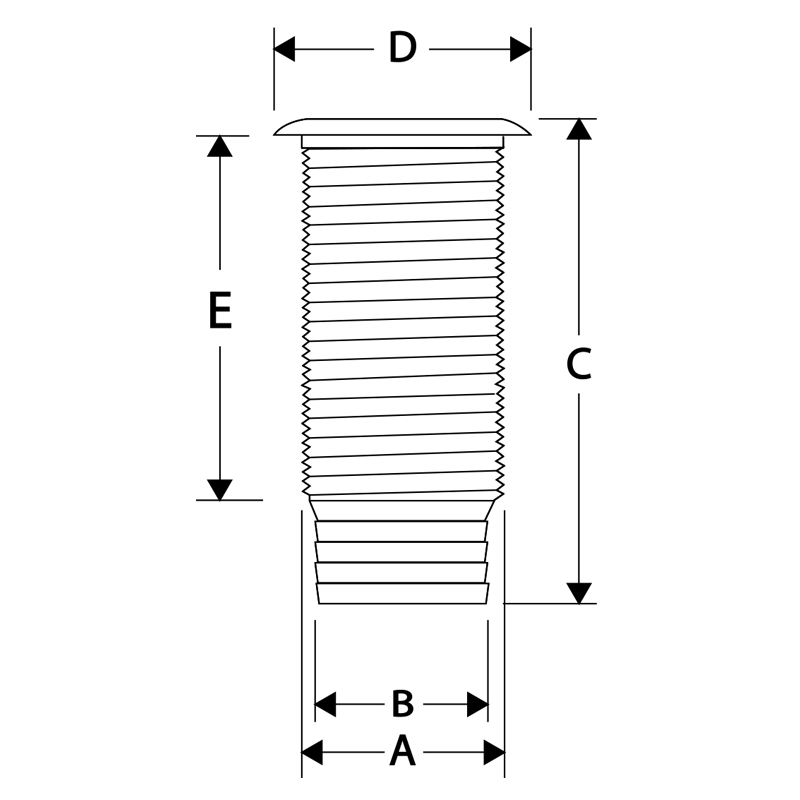

*Thread ØA According to BSP thread dimensions
Use left and right arrow keys to navigate between tabs.
| Code | Description | Colour | ØA | ØB | Material | ØD | C | E |
|---|---|---|---|---|---|---|---|---|
![[196997] Thru-Hull Threaded 1 ½'', w/Hose Barb Ø38mm, L.87mm,White image](https://www.nuovarade.com/images/items/itm_196997-8_197005-6_197012-3_197018-9.jpg)
|
Thru-Hull Threaded 1 ½'', w/Hose Barb Ø38mm, L.87mm,White | White | 1 1/2" | 38mm | PA | 64 mm | 87 mm | 56 mm |
|
|
Thru-Hull Threaded 1 ½'' ,f/Hose Ø45mm, L.86mm,White | White | 1 1/2" | 45mm | PA | 63 mm | 86 mm | 58 mm |
|
|
Thru-Hull Threaded 1 ½'', w/Hose Barb Ø38mm, White | White | 1 1/2" | 38mm | PA | 63 mm | 117 mm | 86 mm |
|
|
Thru-Hull Threaded 1 ½'',f/Hose Ø45mm, L.117mm,White | White | 1 1/2" | 45mm | PA | 63 mm | 117 mm | 86 mm |
|
|
Thru-Hull Threaded 2'', w/Hose Barb Ø51mm, L122mm,White | White | 2" | 51mm | PA | 72 mm | 122mm | 55 mm |
|
|
Thru-Hull Threaded 2'', w/Hose Barb Ø56mm, L122mm,White | White | 2" | 55mm | PA | 72 mm | 121 mm | 55 mm |
|
|
Thru-Hull Threaded 2'',w/Hose Barb Ø51mm, L167mm,White | White | 2" | 51mm | PA | 72 mm | 167 mm | 100 mm |
|
|
Thru-Hull Threaded 2''w/Hose Barb Ø56mm, L167mm,White | White | 2" | 55mm | PA | 72 mm | 167 mm | 100 mm |
