Thru-Hulls Elbow 90º for Hose, PA

Thru-Hulls Elbow 90º for Hose, PA

Elbow thru-hulls are the answer to the most common plumbing issues:

  • Allow major room saving, as they can be used with a hose running along the hull
  • Avoid making a bend in the hose, which can sometimes be a source of leak or breakage
  • Require a simplified installation process inside the hull, carried out by one person only. You can hold it firmly with one hand, while screwing with the other hand
Use left and right arrow keys to navigate between tabs.

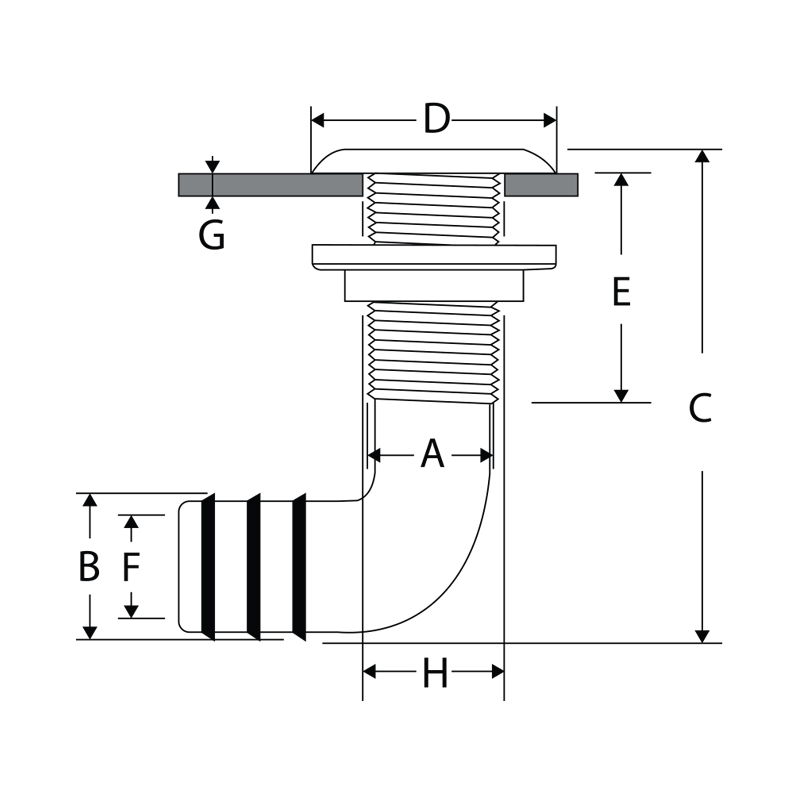

Code Description Colour ØA ØB Material ØD ØF C E G
[39548] Thru-Hull Elbow 90º, for Hose Ø20mm, PA, White image
Thru-Hull Elbow 90º, for Hose Ø20mm, PA, White White 26.3mm 20.8mm PA 45mm 14.7mm 84mm 40mm Hull thickn. <20mm Ø28mm
[39549] Thru-Hull Elbow 90º, for Hose Ø25mm, PA, White image
Thru-Hull Elbow 90º, for Hose Ø25mm, PA, White White 30.3mm 26.2mm PA 53mm 19mm 90.5mm 40mm Hull thickn. <20mm Ø33mm
[39550] Thru-Hull Elbow 90º, for Hose Ø38mm, PA, White image
Thru-Hull Elbow 90º, for Hose Ø38mm, PA, White White 48mm 39mm PA 70mm 31.7mm 114mm 45mm Hull thickn. <20mm Ø50mm
