Thru-Hull with Inox Flange

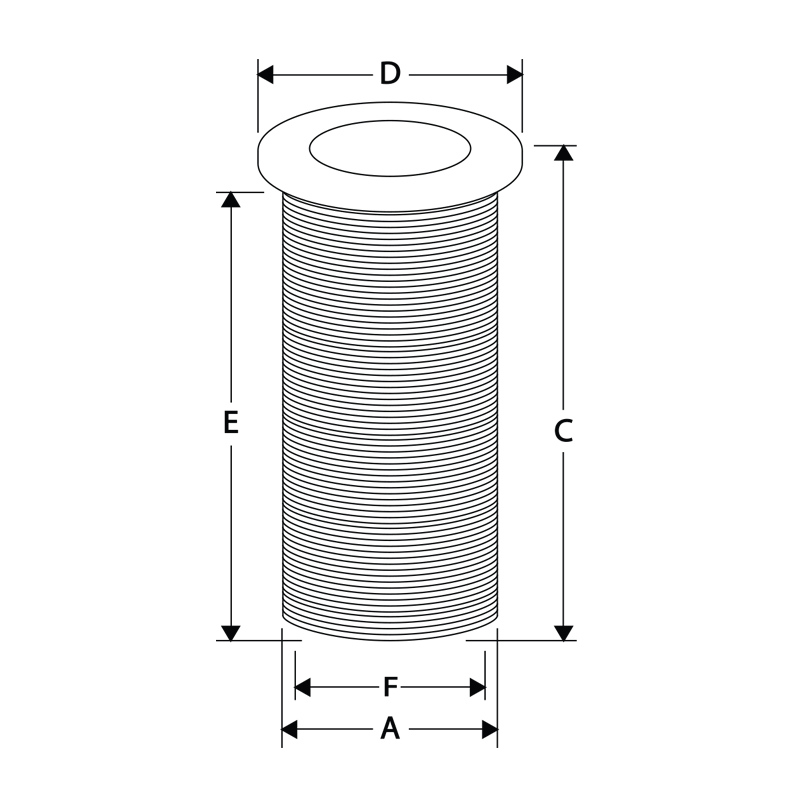

| Code | Description | ØA | C | ØD | E | Int. Ø F (mm) | Material | Optional Plug | Optional Valve | Optional Elbow | Colour |
|---|---|---|---|---|---|---|---|---|---|---|---|
![[] Thru-Hull w/Inox Flange, Threaded 1 ½'', L.62mm image](https://www.nuovarade.com/images/items/itm_196999_197007_197014_197020_197213.jpg)
|
Thru-Hull w/Inox Flange, Threaded 1 ½'', L.62mm | 1 1/2'' inch | 62mm | 64mm | 54mm | 39mm | Inox 316 | 45312 | 197023 | 197065 | INOX 316 |
|
|
Thru-Hull w/Inox Flange, Threaded 1 ½'', L92mm | 1 1/2'' inch | 92mm | 64mm | 84mm | 40mm | Inox 316 | 45312 | 197023 | 197065 | INOX 316 |
|
|
Thru-Hull w/Inox Flange, Threaded 2'', L.72mm | 2'' inch | 72mm | 72mm | 65mm | 48mm | Inox 316 | - | 197024 | 197061 | INOX 316 |
|
|
Thru-Hull w/Inox Flange, Threaded 2'', L.118mm | 2'' inch | 118mm | 72mm | 72mm | 48mm | Inox 316 | - | 197024 | 197061 | INOX 316 |
|
|
Thru-Hull w/Inox Flange, Threaded 1'', L.87mm | 1'' inch | 87mm | 50mm | 82mm | 24mm | Inox 316 | - | - | - | INOX 316 |
