Thru-Hull Threaded with Standard Flange, White
Thru-Hull Threaded with Standard Flange, White
*Thread ØA According to BSP thread dimensions
Use left and right arrow keys to navigate between tabs.

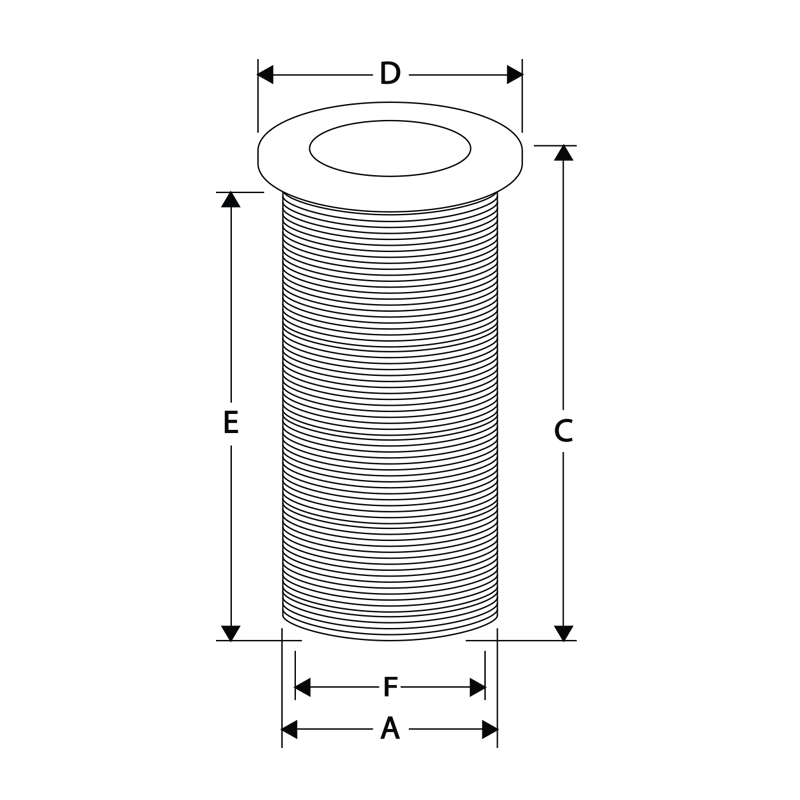

| Code | Description | Model | ØA | Material | ØD | ØF | C | E |
|---|---|---|---|---|---|---|---|---|
![[196995] Thru-Hull Stand. Flange, Threaded 1½'', L.62mm, White image](https://www.nuovarade.com/images/items/itm_196995_197003_197011_197017_197211.jpg)
|
Thru-Hull Stand. Flange, Threaded 1½'', L.62mm, White | threaded | 1 1/2'' inch | PA | 64 mm | 39 mm | 62 mm | 54 mm |
|
|
Thru-Hull Stand. Flange, Threaded 1½'', L.92mm, White | threaded | 1 1/2'' inch | PA | 64 mm | 40 mm | 92 mm | 84 mm |
|
|
Thru-Hull Stand. Flange, Threaded 2'', L.72mm, White | threaded | 2'' inch | PA | 72 mm | 48 mm | 72 mm | 65 mm |
|
|
Thru-Hull Stand. Flange, Threaded 2'', L.117mm, White | threaded | 2'' inch | PA | 72 mm | 48 mm | 117 mm | 110 mm |
|
|
Thru-Hull Stand. Flange, Threaded 1'', L.87mm, White | threaded | 1'' inch | PA | 50 mm | 24 mm | 87 mm | 82 mm |
