Thru-Hull Threaded with Standard Flange and Hose Barb
Thru-Hull Threaded with Standard Flange and Hose Barb

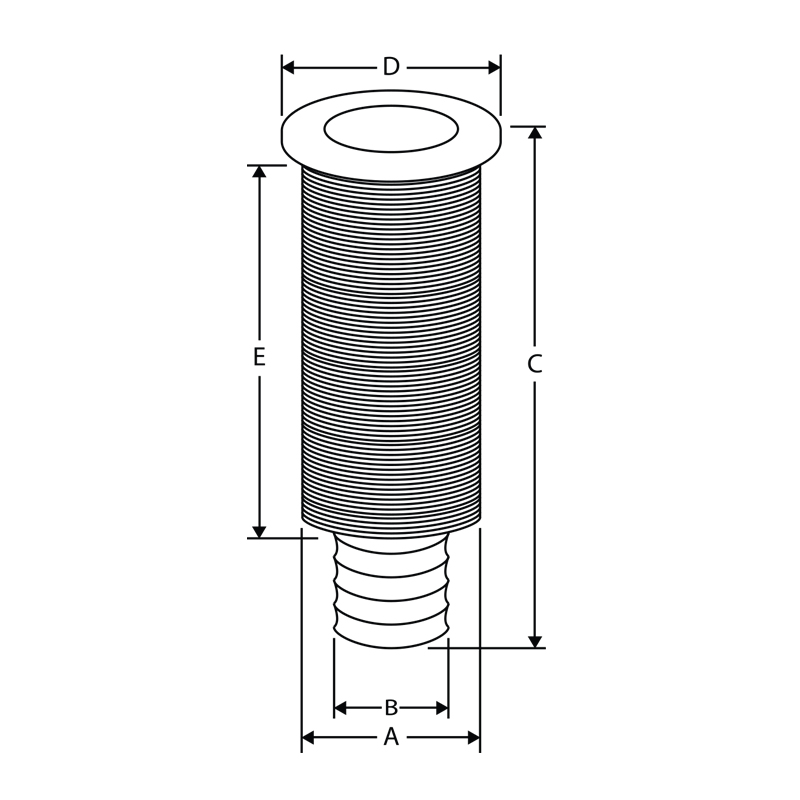

*Thread ØA According to BSP thread dimensions
Use left and right arrow keys to navigate between tabs.
| Code | Description | Colour | ØA | ØB | Material | ØD | C | E |
|---|---|---|---|---|---|---|---|---|
![[43508] Thru-Hull w/St.Flange, 7/8'',w/Hose Barb Ø25mm,White image](https://www.nuovarade.com/images/items/itm_43508_510_43543_545_47757.jpg)
|
Thru-Hull w/St.Flange, 7/8'',w/Hose Barb Ø25mm,White | White | 7/8" (30mm) | 25mm | PA | 40mm | 100mm | 70mm |

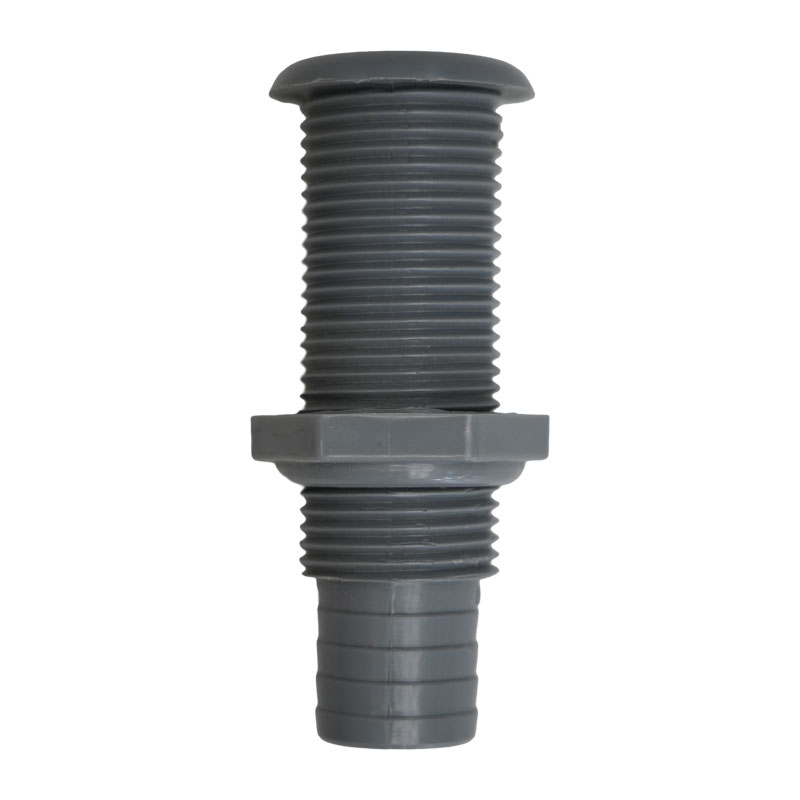

![[43509] Thru-Hull w/St.Flange, 7/8'',w/Hose Barb Ø25mm, Grey image](https://www.nuovarade.com/images/items/itm_43509.jpg)
|
Thru-Hull w/St.Flange, 7/8'',w/Hose Barb Ø25mm, Grey | Grey | 7/8" (30mm) | 25mm | PA | 40mm | 100mm | 70mm |
|
|
Thru-Hull w/St.Flange, 7/8'',w/Hose Barb Ø25mm, Black | Black | 7/8" (30mm) | 25mm | PA | 40mm | 100mm | 70mm |
|
|
Thru-Hull w/St.Flange, 1'', w/Hose Barb Ø30mm, White | White | 1'' | 30mm | PA | 42mm | 100mm | 70mm |
|
|
Thru-Hull w/St.Flange, 1'', w/Hose Barb Ø30mm, Grey | Grey | 1'' | 30mm | PA | 42mm | 100mm | 70mm |
|
|
Thru-Hull w/St.Flange, 1'', w/Hose Barb Ø30mm, Black | Black | 1'' | 30mm | PA | 42mm | 100mm | 70mm |
|
|
Thru-Hull w/St.Flange, 7/8'',w/Hose Barb Ø25mm, Cream | Cream | 7/8" (30mm) | 25mm | PA | 40mm | 100mm | 70mm |
![[95793] Thru-Hull St.Flange, 7/8'', f/Hose Ø25mm, L126mm,White image](https://www.nuovarade.com/images/items/itm_95793.jpg)
|
Thru-Hull St.Flange, 7/8'', f/Hose Ø25mm, L126mm,White | White | 7/8" (30mm) | 25mm | PP | 40mm | 126mm | 92mm |
