Thru-Hull Fitting, w/ Washer, White, ISO

Thru-Hull Fitting, w/ Washer, White, ISO

  • Body & nut: Made of glass reinforced PA
  • Washer: Made of PA
  • Tested according to ISO 9093 standard
  • Available in white colour
  • Thread Ø (A) according to BSP thread dimensions

Installation Instructions:

  • All types of standard bedding compounds and epoxy or polyester resins can be used for the installation.
  • Mark the position inside and outside the hull. Drill the clearance hole into the hull. Apply the bedding compound to the underside of the flange. Do not cover the thread area. Insert the thru-hull's body from the outside. From the inside, place the washer and the screw nut to tighten. The skin fitting should be installed in a position where it is protected from impact damage.
  • Tighten the nut to a maximum 20Nm of torque.
Use left and right arrow keys to navigate between tabs.

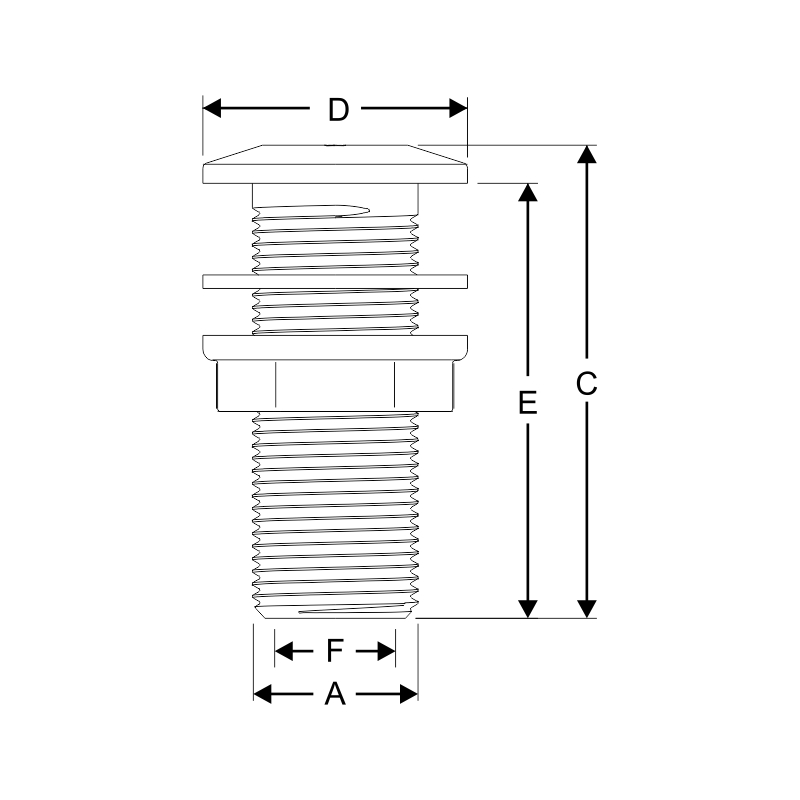

Code Description Thread Ø A (inch) Overall Length C (mm) Flush Flange Ø D (mm) Thread Length Ε (mm) Int. Ø F (mm) Optional Plug

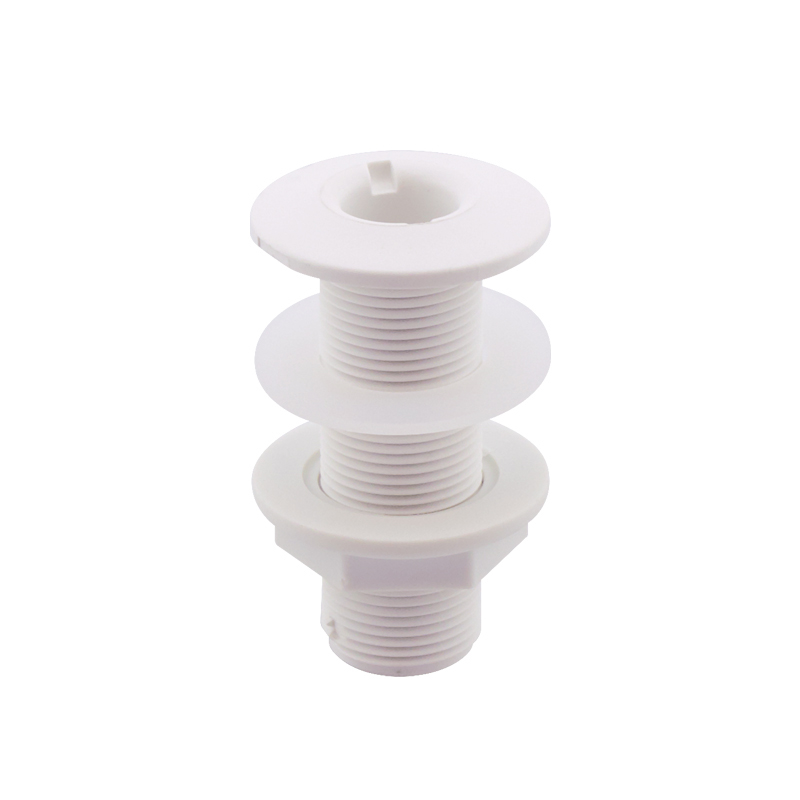

[198216] Thru-Hull Fitting 3/4'',w/ Washer, L.81mm, White, ISO image
Thru-Hull Fitting 3/4'',w/ Washer, L.81mm, White, ISO 3/4” 81 47 75 16 -

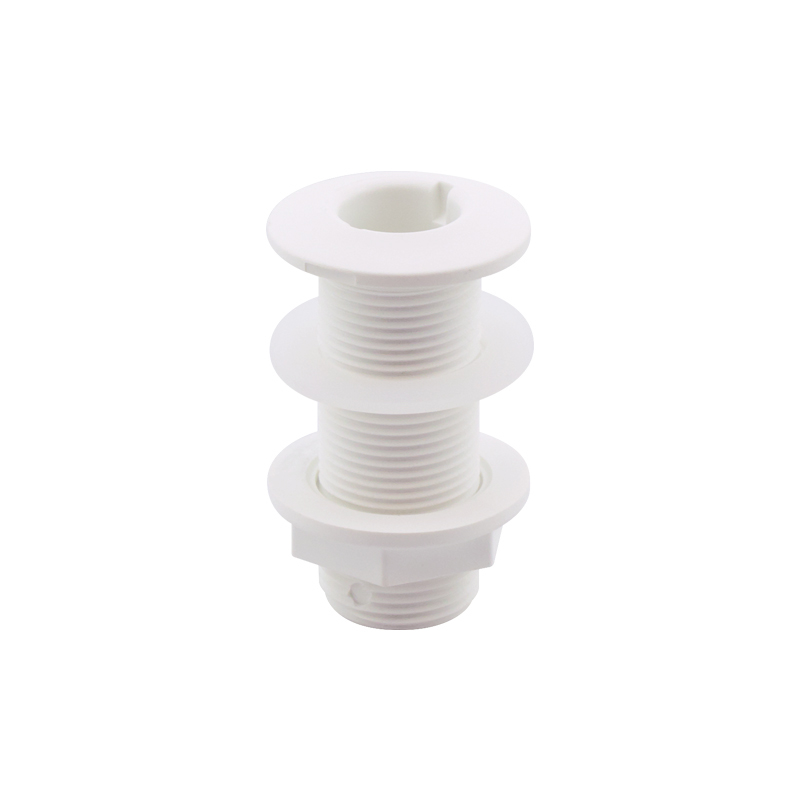

[198217] Thru-Hull Fitting 1'',w/ Washer, L.87mm, White, ISO image
Thru-Hull Fitting 1'',w/ Washer, L.87mm, White, ISO 1” 87 52 80 23 45306 or 45309

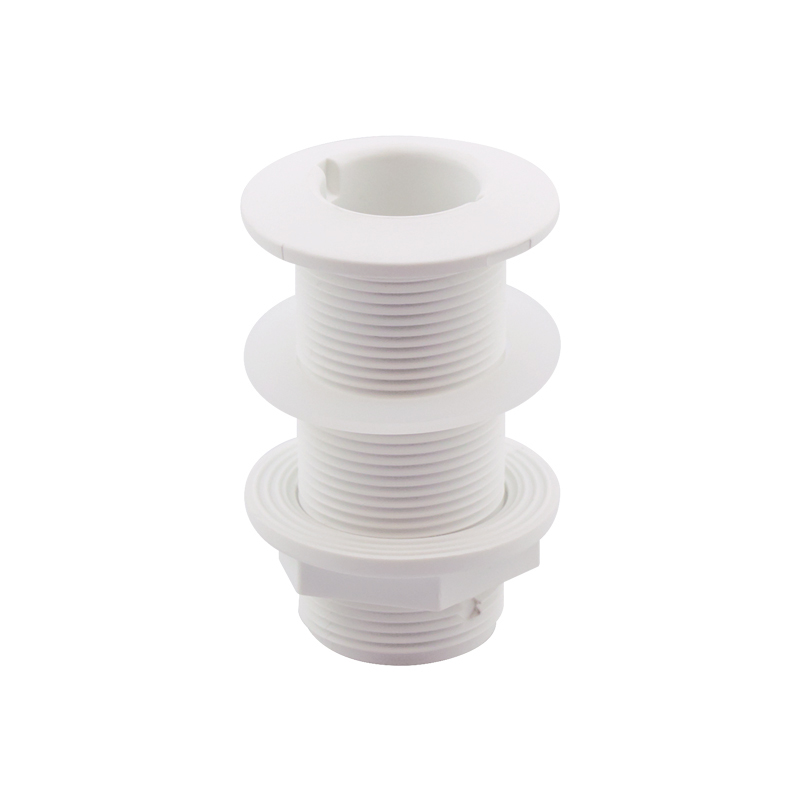

[198219] Thru-Hull Fitting 1 1/4'',w/ Washer, L98mm, White, ISO image
Thru-Hull Fitting 1 1/4'',w/ Washer, L98mm, White, ISO 1 ¼’’ 98 62 90 30 -

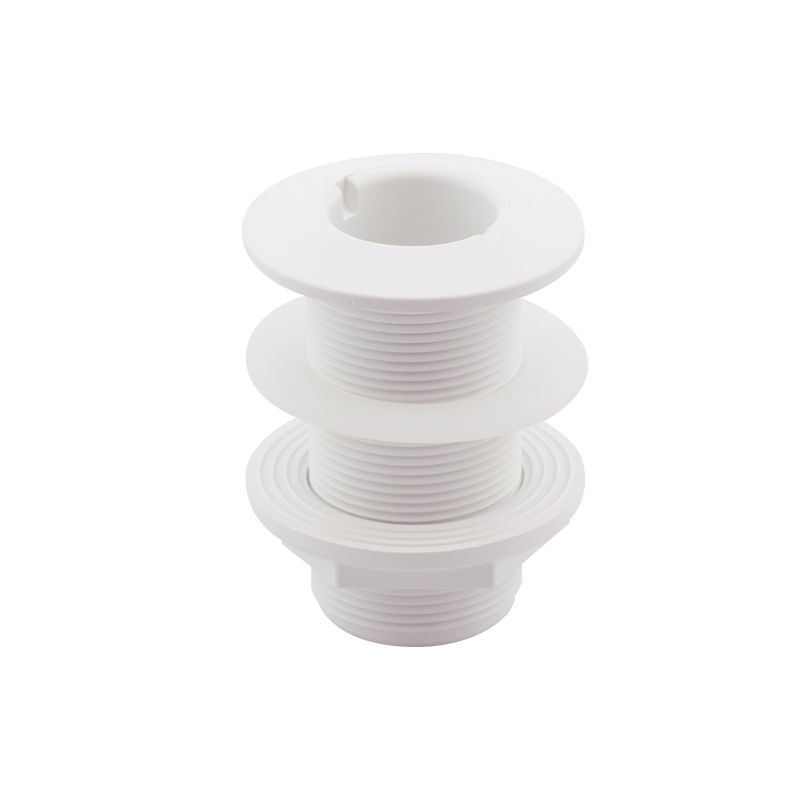

[198220] Thru-Hull Fitting 1 1/2'',w/ Washer, L98mm, White, ISO image
Thru-Hull Fitting 1 1/2'',w/ Washer, L98mm, White, ISO 1 ½’’ 98 75 90 36 45307

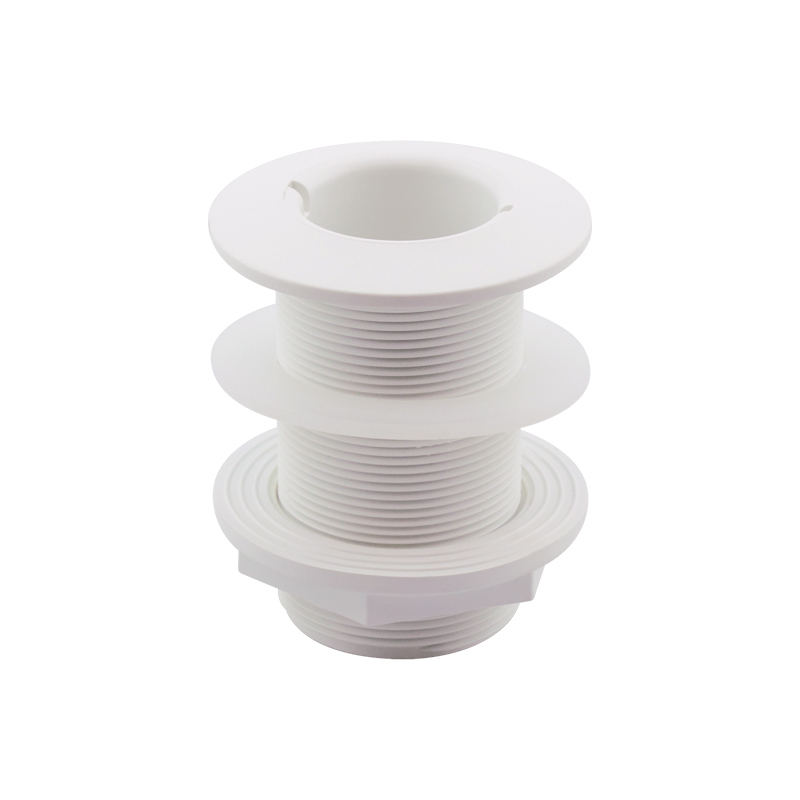

[198222] Thru-Hull Fitting 2'',w/ Washer, L110mm, White, ISO image
Thru-Hull Fitting 2'',w/ Washer, L110mm, White, ISO 2’’ 110 90 100 45 -
