Thru-Hull Fitting

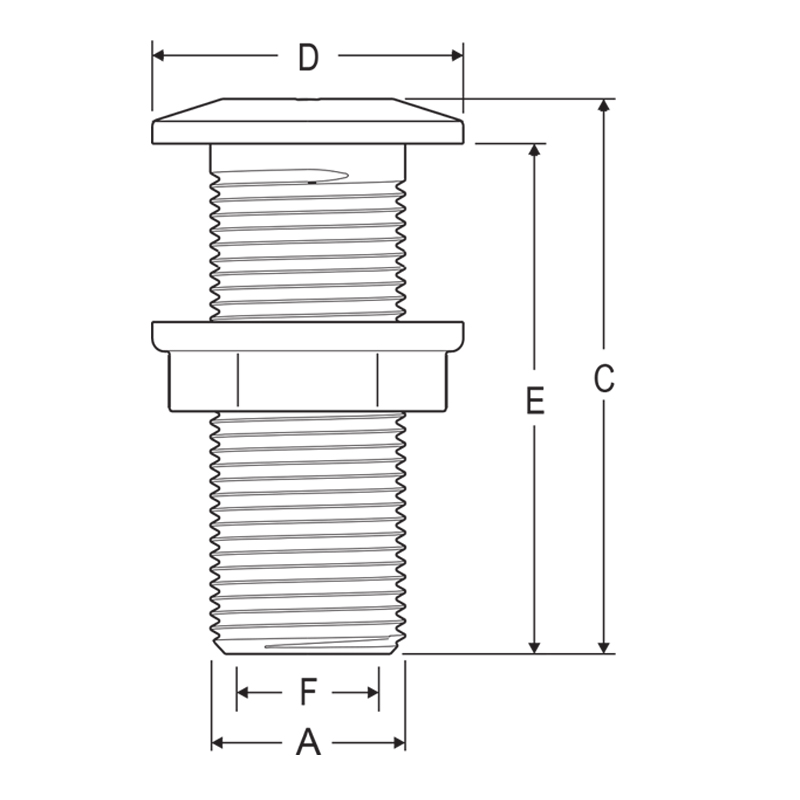

*Thread ØA According to BSP thread dimensions

Use left and right arrow keys to navigate between tabs.

Description	Colour	ØA	Material	ØD	ØF	C	E
Thru-Hull Fitting 3/4'', L.77mm, White	White	3/4'' inch	PA	44 mm	19 mm	77 mm	70 mm
Thru-Hull Fitting 1 1/4'', L98mm, White	White	1 1/4'' inch	PA	62 mm	30 mm	98 mm	90 mm
Thru-Hull Fitting 2'', L110mm, White	White	2'' inch	PA	90 mm	45 mm	110 mm	100 mm
Thru-Hull Fitting 1/2'', L.74mm, White	White	1/2'' inch	PA	40 mm	15 mm	74 mm	66 mm
Thru-Hull Fitting 3/4'', L.81mm, White	White	3/4'' inch	PA	47 mm	16 mm	81 mm	75 mm
Thru-Hull Fitting 1'', L.87mm, White	White	1'' inch	PA	52 mm	23 mm	87 mm	80 mm
Thru-Hull Fitting 1 1/2'', L.98mm, White	White	1 1/2'' inch	PA	75 mm	36 mm	98 mm	90 mm
