Cases with Fresh Water Inlet, with Lid

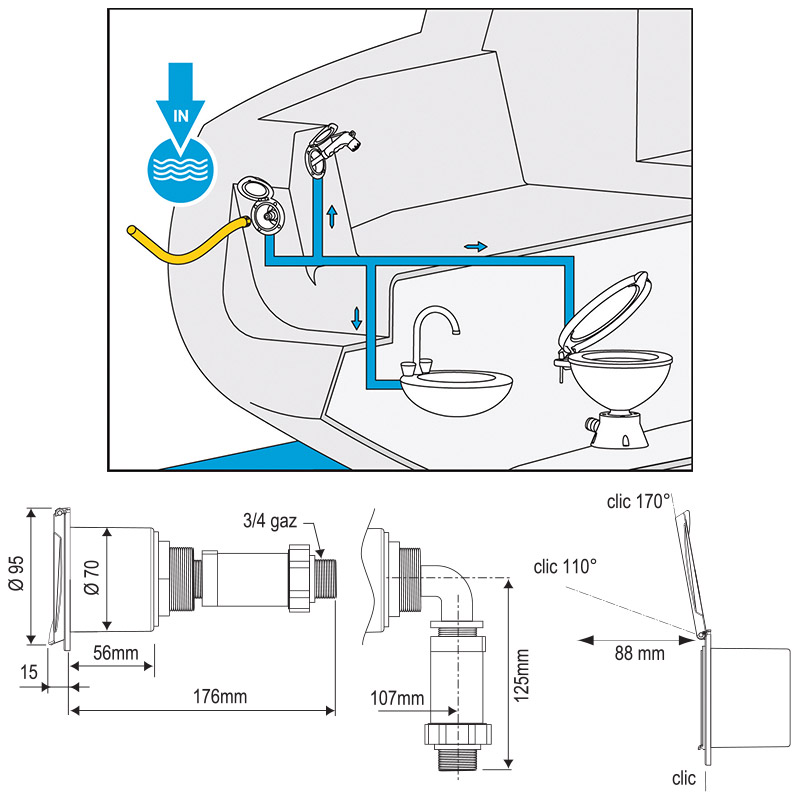

This is the perfect connection between the boat’s water network and the shore water supply. It is then easy to cook or have a shower when at the dock, without using water from the tanks (not suitable for filling the water tanks).

The complete set (47812-5) includes:

• An ASA housing with plastic splash-proof cover
• A pressure regulator which accepts up to 5 bar working pressure, compatible with most appliances and equipment on board
• A non-return valve
• A male quick-coupling fitting for garden hose connection
• Male 3/4” threaded connector to the boat’s water system

The complete set (58131) includes:

• An ASA housing with plastic splash-proof cover
• A male quick-coupling fitting for garden hose connection
• Male 3/4” threaded connector to the boat’s water system
• Metal pressure regulator with cloth diaphragm valve, adjustable from 1,5 to 5 bar
• Maintenance free, robust construction with silent operation (no vibration)
• Max. inlet pressure: 15 bar
• Max. temperature: 70°C
• Corrosion preventing DZR brass body
• Factory preset (4 bar at zero discharge for 3 bar working)
• Diaphragm and seals EPDM & NBR
• Slotted adjusting screw that can be turned with a flathead screwdriver
• Female 1/4” pressure gauge outlet
