TOP LINE Deck Hatches (315 x 440mm)
TOP LINE Deck Hatches (315 x 440mm)
TOP LINE deck hatch is available in many dimensions and in a variety of colours (white, grey, cream, black). Made of UV-resistant high-grade ASA, in order to provide resistance to damage and chemical
solvents. Designed for external use. UV-resistant cover and frame, with a 180ο opening door and a durable handle. It is specially designed with a non-skid surface and can be mounted both horizontally
and vertically. This hatch is mounted with hidden screws for discrete appearance. EPDM rubber gasket, provides resistance to water.
It guarantees easy opening and easy access when needed.
Option with lock can be also provided (non ISO).
Designed & produced in Italy.
Use left and right arrow keys to navigate between tabs.

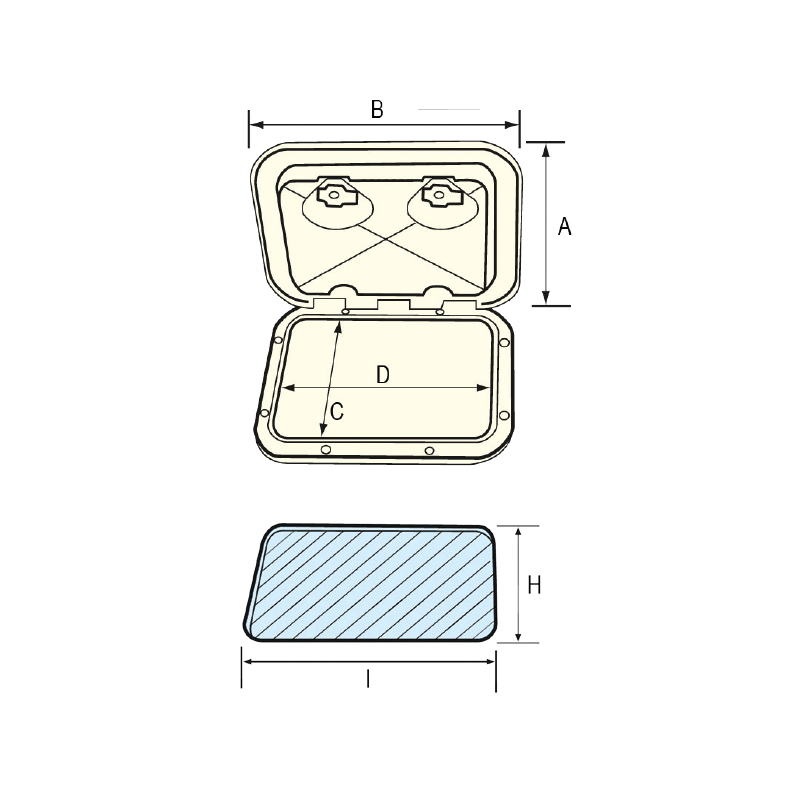

| Code | Description | Colour | Model | C | A | B | D | H | I |
|---|---|---|---|---|---|---|---|---|---|
![[196300] TOP LINE Hatch, White, 315x440mm, ISO12216 image](https://www.nuovarade.com/images/items/itm_196300_196306_196303_196256_196317_196312_197294_.jpg)
|
TOP LINE Hatch, White, 315x440mm, ISO12216 | White | Standard | 237mm | 315mm | 440mm | 357mm | 243mm | 363mm |
![[196301] TOP LINE Hatch w/Lock, White, 315x440mm image](https://www.nuovarade.com/images/items/itm_196301_196307_196304_196309_196318_196313_197331.jpg)
|
TOP LINE Hatch w/Lock, White, 315x440mm | White | With Lock | 237mm | 315mm | 440mm | 357mm | 243mm | 363mm |
|
|
TOP LINE Hatch, Cream, 315x440mm, ISO12216 | Cream | Standard | 237mm | 315mm | 440mm | 357mm | 243mm | 363mm |
|
|
TOP LINE Hatch, Grey, 315x440mm, ISO12216 | Grey | Standard | 237mm | 315mm | 440mm | 357mm | 243mm | 363mm |
| 198017 | TOP LINE Hatch, Black, 315x440mm, ISO12216 | Black | Standard | 237mm | 315mm | 440mm | 357mm | 243mm | 363mm |
