Cleats Polyamide
Cleats Polyamide
Use left and right arrow keys to navigate between tabs.
| Code | Description | Colour | C | E | A | B | D |
|---|---|---|---|---|---|---|---|
![[43377] Cleat Polyamide, 60x19mm, White image](https://www.nuovarade.com/images/items/itm_43377_43380_43383_43386_43389_43392.jpg)
|

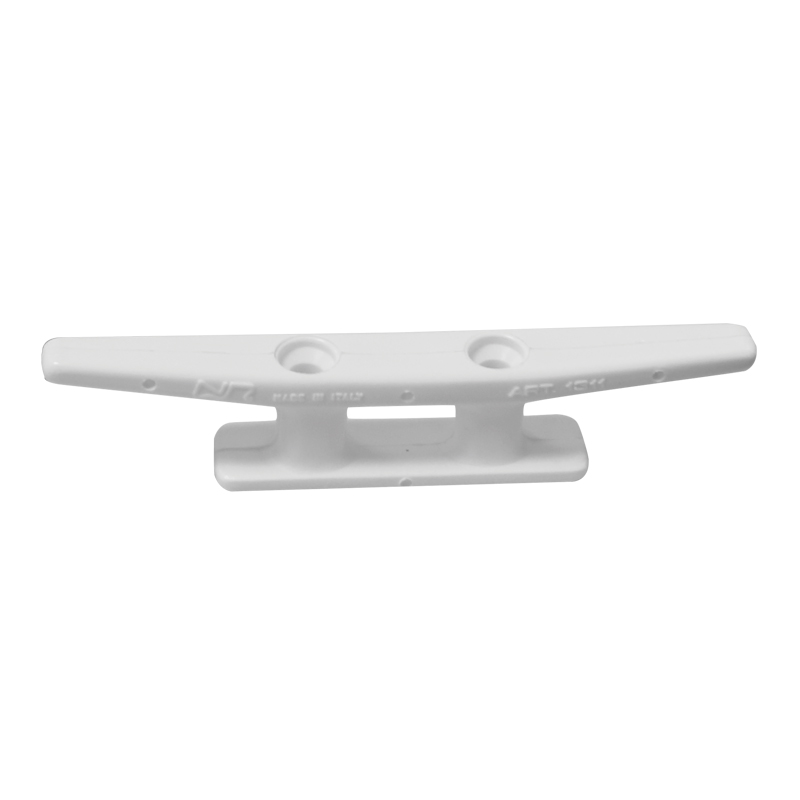

Cleat Polyamide, 60x19mm, White | White | 9mm | Ø3mm | 60mm | 14mm | 19mm |
![[43378] Cleat Polyamide, 60X19mm, Black image](https://www.nuovarade.com/images/items/itm_43378_43381_43384_43387_43390_43393.jpg)
|
Cleat Polyamide, 60X19mm, Black | Black | 9mm | Ø3mm | 60mm | 14mm | 19mm |
|
|
Cleat Polyamide, 80X22mm, White | White | 9mm | Ø4mm | 80mm | 16mm | 21mm |
|
|
Cleat Polyamide, 80X22mm, Black | Black | 9mm | Ø4mm | 80mm | 16mm | 21mm |
|
|
Cleat Polyamide, 110X28mm, White | White | 16mm | Ø5mm | 107,5mm | 22mm | 29mm |
|
|
Cleat Polyamide, 110X28mm, Black | Black | 16mm | Ø5mm | 107,5mm | 22mm | 29mm |
|
|
Cleat Polyamide, 145X35mm, White | White | 20mm | Ø6mm | 142mm | 29mm | 34mm |
|
|
Cleat Polyamide, 145X35mm, Black | Black | 20mm | Ø6mm | 142mm | 29mm | 34mm |
|
|
Cleat Polyamide, 180X45mm, White | White | 23,5mm | Ø7mm | 176mm | 35mm | 43mm |
|
|
Cleat Polyamide, 180X45mm, Black | Black | 23,5mm | Ø7mm | 176mm | 35mm | 43mm |
|
|
Cleat Polyamide, 220X52mm, White | White | 29mm | Ø8,5mm | 209mm | 45mm | 54mm |
|
|
Cleat Polyamide, 220X52mm, Black | Black | 29mm | Ø8,5mm | 209mm | 45mm | 54mm |
