Thru-Hulls with Flush Flange and Hose Barb, Chromed
*Thread ØA According to BSP thread dimensions
| Code | Description | Colour | ØA | ØB | C | ØD | E | Material |
|---|---|---|---|---|---|---|---|---|

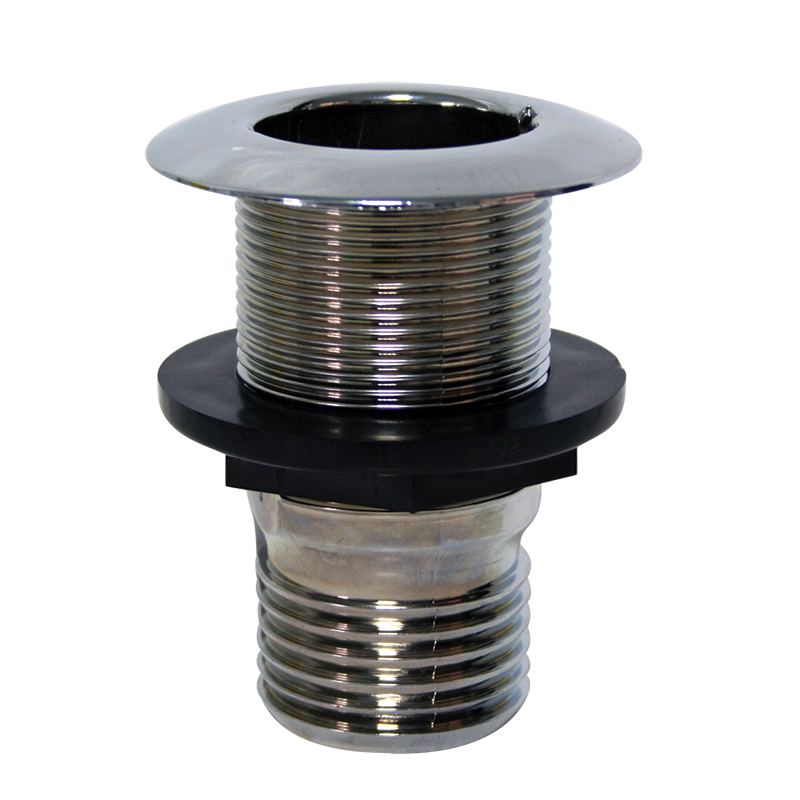

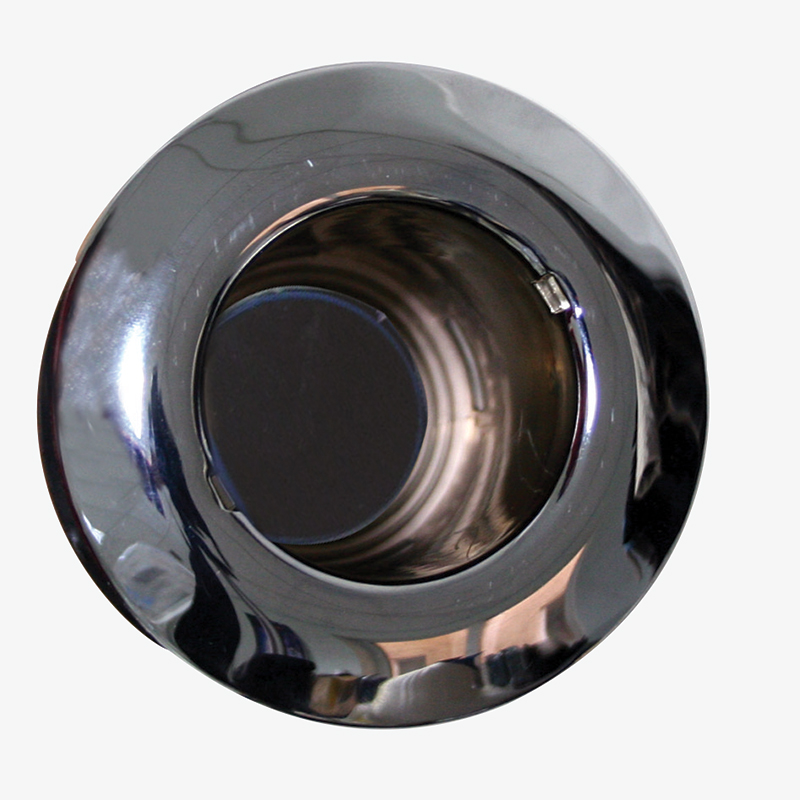

![[] Thru-Hull w/Fl.Flange, 1'', w/Hose Barb Ø19mm, Chromed image](https://www.nuovarade.com/images/items/itm_70597-8_70600_70603.jpg)
|
Thru-Hull w/Fl.Flange, 1'', w/Hose Barb Ø19mm, Chromed | Chrome | 1'' inch | 19 mm | 82 mm | 45 mm | 36 mm | PP |
|
|
Thru-Hull w/Fl.Flange, 1'', w/Hose Barb Ø25mm, Chromed | Chrome | 1'' inch | 25 mm | 82 mm | 45 mm | 36 mm | PP |
|
|
Thru-Hull w/Fl.Flange,1 1/2'', for Hose Ø42mm, Chromed | Chrome | 1 1/2'' inch | 42 mm | 94 mm | 74 mm | 50 mm | PP |
|
|
Thru-Hull w/Non-return Valve for Ø42mm Hose,Chromed | Chrome | 1 1/2'' inch | 42 mm | 94 mm | 74 mm | 50 mm | PP |
