BLIZZARD Waste Water Tanks
BLIZZARD line of horizontal waste water tanks is made of high-density polyethylene material, in brown colour. Polyethylene material is used to prevent any waste odors. The line consists of a full-size range of 40L, 60L, 80L and 100L, complying with international standards and can safely hold waste water from toilets until they can be discarded safely. This waste water tank is available in two options. One option is provided only with the holding base tank alone and the other option comes with a complete set, that includes a holding tank, a diaphragm pump (12V) and fittings. A large range of accessories is available, such as pump, sensor, vented loop, valve, filter and deck filler.
Available customised solutions (colour or dimensions) upon request & sufficient quantities.

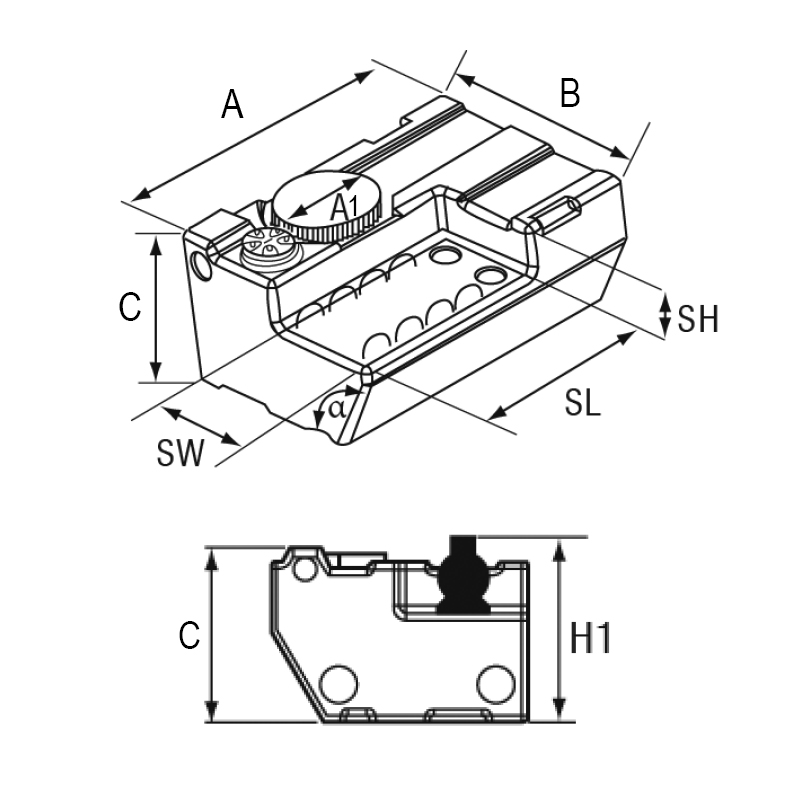

| Code | Description | Length | Width | Height | Capacity | Model | ØA | SL | SH | SW | Angle | H1 | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

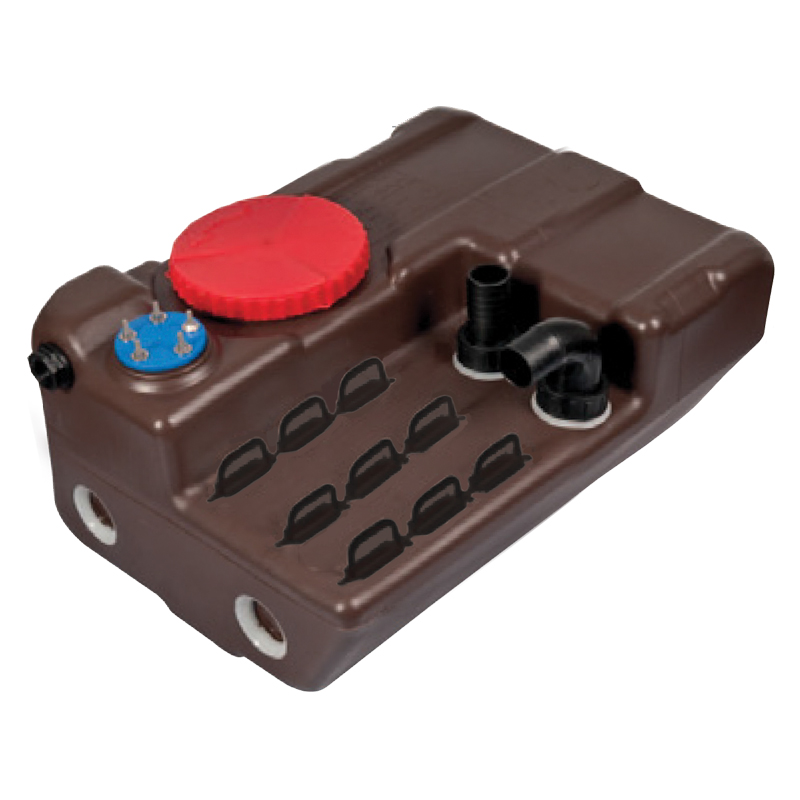

![[] BLIZZARD Waste Water Tank 40L,Base, L.545mm image](https://www.nuovarade.com/images/items/itm_196867_870.jpg)
|
BLIZZARD Waste Water Tank 40L,Base, L.545mm | 545mm | 400mm | 270mm | 40lt | - | 133.5mm | 350mm | 80mm | 200mm | 120° | - | Base Tank |
|
|
BLIZZARD Waste Water Tank 60L,Base, L.775mm | 775mm | 400mm | 270mm | 60lt | - | 133.5mm | 350mm | 80mm | 200mm | 120° | - | Base Tank |
|
|
BLIZZARD Waste Water Tank 80L,Base, L.1005mm | 1005mm | 400mm | 270mm | 80lt | - | 133.5mm | 350mm | 80mm | 200mm | 120° | - | Base Tank |
|
|
BLIZZARD Waste Water Tank 100L,Base, L.1245mm | 1245mm | 400mm | 270mm | 100lt | - | 133.5mm | 350mm | 80mm | 200mm | 120° | - | Base Tank |

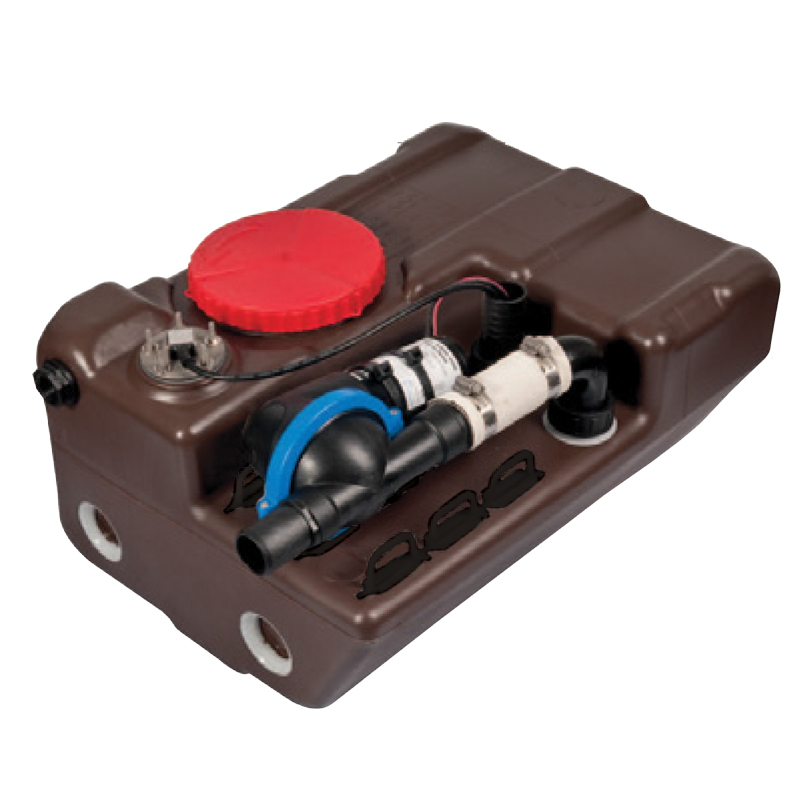

![[] BLIZZARD Waste Water Tank 40L, w/Pump 12V, 19L/min & Sensor, L.545mm image](https://www.nuovarade.com/images/items/itm_196871_878.jpg)
|
BLIZZARD Waste Water Tank 40L, w/Pump 12V, 19L/min & Sensor, L.545mm | 545mm | 400mm | 270mm | 40lt | 12V Pump | 133.5mm | 350mm | 80mm | 200mm | 120° | 320mm | Tank with Pump and sensor |
|
|
BLIZZARD Waste Water Tank 60L, w/Pump 12V, 19L/min & Sensor, L.775mm | 775mm | 400mm | 270mm | 60lt | 12V Pump | 133.5mm | 350mm | 80mm | 200mm | 120° | 320mm | Tank with Pump and sensor |
|
|
BLIZZARD Waste Water Tank 80L, w/Pump 12V, 19L/min & Sensor, L.1005mm | 1005mm | 400mm | 270mm | 80lt | 12V Pump | 133.5mm | 350mm | 80mm | 200mm | 120° | 320mm | Tank with Pump and sensor |
|
|
BLIZZARD Waste Water Tank 100L, w/Pump 12V, 19L/min & Sensor, L.1245mm | 1245mm | 400mm | 270mm | 100lt | 12V Pump | 133.5mm | 350mm | 80mm | 200mm | 120° | 320mm | Tank with Pump and sensor |
|
|
BLIZZARD Waste Water Tank 40L, w/Pump 24V, 19L/min & Sensor, L.545mm | 545mm | 400mm | 270mm | 40lt | 24V Pump | 133.5mm | 350mm | 80mm | 200mm | 120° | 320mm | Tank with Pump and sensor |
|
|
BLIZZARD Waste Water Tank 60L, w/Pump 24V, 19L/min & Sensor, L.775mm | 775mm | 400mm | 270mm | 60lt | 24V Pump | 133.5mm | 350mm | 80mm | 200mm | 120° | 320mm | Tank with Pump and sensor |
|
|
BLIZZARD Waste Water Tank 80L, w/Pump 24V, 19L/min & Sensor, L.1005mm | 1005mm | 400mm | 270mm | 80lt | 24V Pump | 133.5mm | 350mm | 80mm | 200mm | 120° | 320mm | Tank with Pump and sensor |
|
|
BLIZZARD Waste Water Tank 100L, w/Pump 24V, 19L/min & Sensor, L.1245mm | 1245mm | 400mm | 270mm | 100lt | 24V Pump | 133.5mm | 350mm | 80mm | 200mm | 120° | 320mm | Tank with Pump and sensor |
