SOGLIOLA Water Tanks
- SOGLIOLA line of horizontal tanks offers options for fuel as well as water use
- The line consists of a full range of 9 models per use, suitable for collection & storage, complying with international standards
- All models are made of polyethylene to avoid rust
- Intended for storage of water for general use on board, such as cleaning and showering
- Additionally, due to the material, these tanks have longer lifetime, contrary to metal ones
- They contain an output for Ø8mm hose (fuel use) or for Ø16mm hose (water use) & a fuel/water supply input that is either threaded with a cap, either with vertical outlet for Ø38mm hose, either with an 45o-angled outlet for Ø38mm hose
- Pre-cut for tank level sensor
- Available customised solutions (colour or dimensions) upon request & sufficient quantities
| Code | Description | Length | Width | Height | Capacity | Connector | Type | Deck Filler |
|---|---|---|---|---|---|---|---|---|

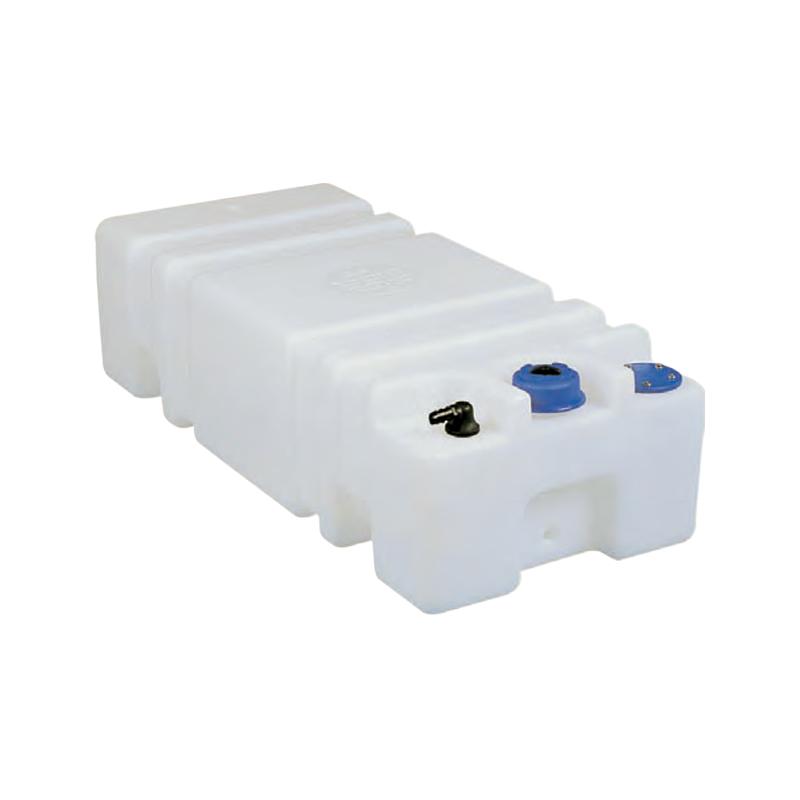

![[] SOGLIOLA Water Tank 45L,w/Filler Cap Thread Ø50mm,L.650mm image](https://www.nuovarade.com/images/items/itm_44833_44835_44837.jpg)
|
SOGLIOLA Water Tank 45L,w/Filler Cap Thread Ø50mm,L.650mm | 650mm | 350mm | 220mm | 45lt | 16mm | With filler cap | Thread Ø 50mm |
|
|
SOGLIOLA Water Tank 60L,w/Filler Cap Thread Ø50mm,L.800mm | 800mm | 350mm | 220mm | 60lt | 16mm | With filler cap | Thread Ø 50mm |
|
|
SOGLIOLA Water Tank 80L,w/Filler Cap Thread Ø50mm,L.1100mm | 1100mm | 350mm | 220mm | 80lt | 16mm | With filler cap | Thread Ø 50mm |

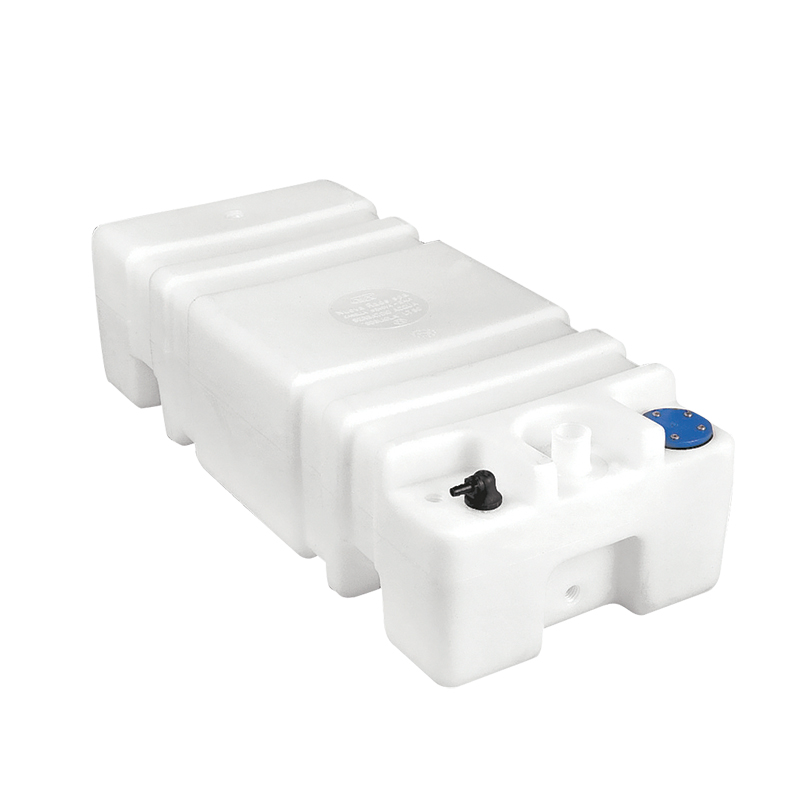

![[] SOGLIOLA Water Tank 45L,w/o Cap,Str.Deck Filler Ø38mm,L.650mm image](https://www.nuovarade.com/images/items/itm_50207_50212_50216.jpg)
|
SOGLIOLA Water Tank 45L,w/o Cap,Str.Deck Filler Ø38mm,L.650mm | 650mm | 350mm | 220mm | 45lt | 16mm | Without cap | Straight Ø 38mm |
![[] SOGLIOLA Water Tank 45L,w/o Cap,45° Deck Filler Ø38mm,L.650mm image](https://www.nuovarade.com/images/items/itm_50208_50213_502171.jpg)
|
SOGLIOLA Water Tank 45L,w/o Cap,45° Deck Filler Ø38mm,L.650mm | 650mm | 350mm | 220mm | 45lt | 16mm | Without cap | 45o Ø 38mm |
|
|
SOGLIOLA Water Tank 60L,w/o Cap,Str.Deck Filler Ø38mm,L.800mm | 800mm | 350mm | 220mm | 60lt | 16mm | Without cap | Straight Ø 38mm |
![[] SOGLIOLA Water Tank 60L,w/o Cap,45° Deck Filler Ø38mm,L.800mm image](https://www.nuovarade.com/images/items/itm_50208_50213_50217.jpg)
|
SOGLIOLA Water Tank 60L,w/o Cap,45° Deck Filler Ø38mm,L.800mm | 800mm | 350mm | 220mm | 60lt | 16mm | Without cap | 45o Ø 38mm |
|
|
SOGLIOLA Water Tank 80L,w/o Cap,Str.Deck Filler Ø38mm,L.1100mm | 1100mm | 350mm | 220mm | 80lt | 16mm | Without cap | Straight Ø 38mm |
|
|
SOGLIOLA Water Tank 80L,w/o Cap,45° Deck Filler Ø38mm,L.1100mm | 1100mm | 350mm | 220mm | 80lt | 16mm | Without cap | 45o Ø 38mm |
Optional Fittings, Connectors & Sensors
