ERCOLE Water Tanks
- ERCOLE line of horizontal tanks offers options for fuel as well as water use
- The line consists of a full range of 9 models per use, suitable for collection & storage, complying with international standards
- All models are made of polyethylene to avoid rust
- Intended for storage of water for general use on board, such as cleaning and showering
- Additionally, due to the material, these tanks have longer lifetime, contrary to metal ones
- They contain an output for Ø8mm hose (fuel use) or for Ø16mm hose (fresh water use) & a fuel/water supply input that is either threaded with a cap, either with vertical outlet for Ø38mm hose, either with an 45o-angled outlet for Ø38mm hose. Pre-cut for tank level sensor
- Available customised solutions (colour or dimensions) upon request & sufficient quantities
| Code | Description | Type | Capacity | Length | Width | Height | Connector | Deck Filler |
|---|---|---|---|---|---|---|---|---|

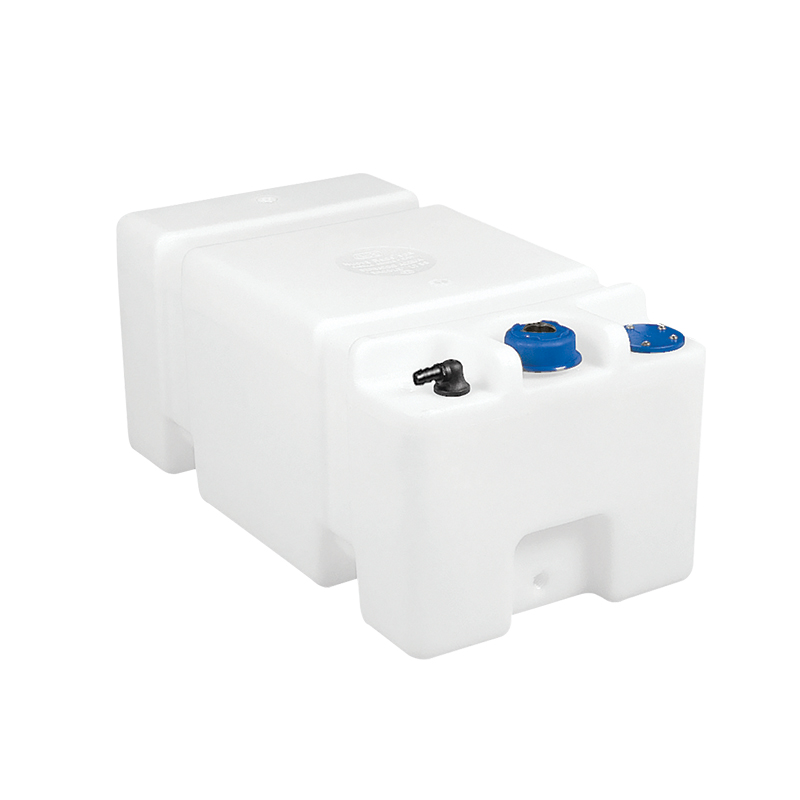

![[] ERCOLE Water Tank 45L,w/Filler Cap Thread Ø50mm, L.500mm image](https://www.nuovarade.com/images/items/itm_44798_44800_44802.jpg)
|
ERCOLE Water Tank 45L,w/Filler Cap Thread Ø50mm, L.500mm | With filler cap | 45lt | 500mm | 350mm | 300mm | 16mm | Thread Ø 50mm |
|
|
ERCOLE Water Tank 56L,w/Filler Cap Thread Ø50mm,L.650mm | With filler cap | 56lt | 650mm | 350mm | 300mm | 16 mm | Thread Ø 50mm |
|
|
ERCOLE Water Tank 70L,w/Filler Cap Thread Ø50mm,L.800mm | With filler cap | 70lt | 800mm | 350mm | 300mm | 16mm | Thread Ø 50mm |

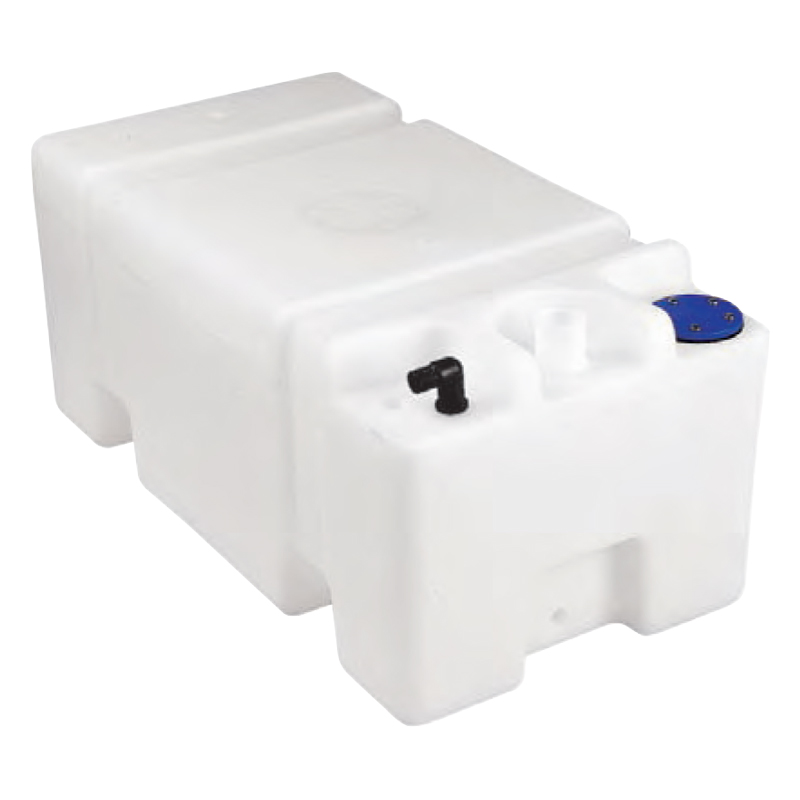

![[] ERCOLE Water Tank 45L,w/o Cap,Str.Deck Filler Ø38mm,L.500mm image](https://www.nuovarade.com/images/items/itm_50193_50197_50203.jpg)
|
ERCOLE Water Tank 45L,w/o Cap,Str.Deck Filler Ø38mm,L.500mm | Without cap | 45lt | 500mm | 350mm | 300mm | 16mm | Straight Ø 38mm |

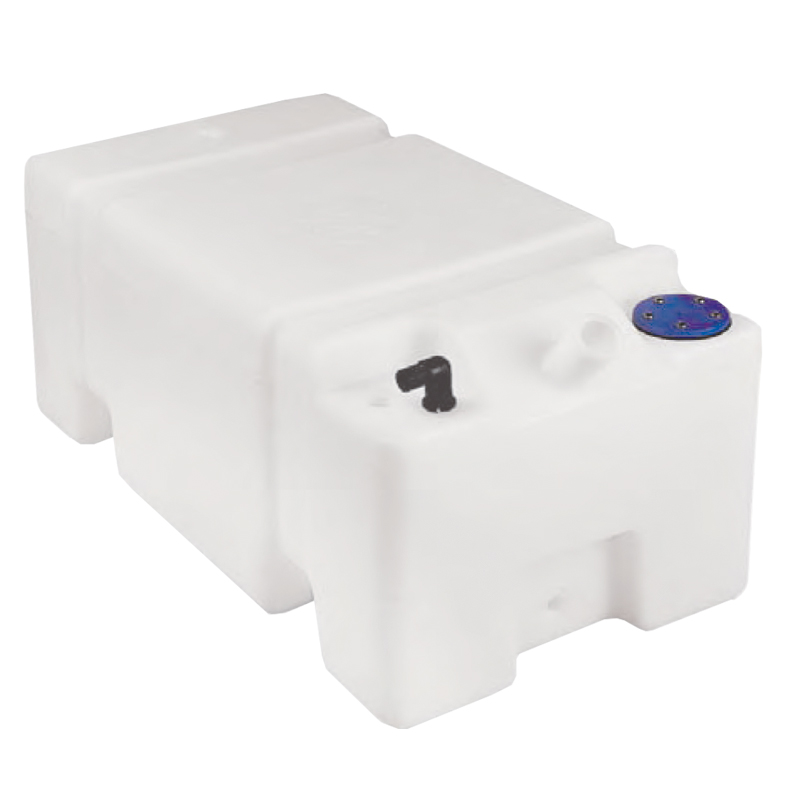

![[] ERCOLE Water Tank 45L,w/o Cap,45° Deck Filler Ø38mm,L.500mm image](https://www.nuovarade.com/images/items/itm_50194_50198_502041.jpg)
|
ERCOLE Water Tank 45L,w/o Cap,45° Deck Filler Ø38mm,L.500mm | Without cap | 45lt | 500mm | 350mm | 300mm | 16mm | 45o Ø 38mm |
|
|
ERCOLE Water Tank 56L,w/o Cap,Str. Deck Filler Ø38mm,L.650mm | Without cap | 56lt | 650mm | 350mm | 300mm | 16mm | Straight Ø 38mm |
|
|
ERCOLE Water Tank 56L,w/o Cap, 45° Deck Filler Ø38mm,L.650mm | Without cap | 56lt | 650mm | 350mm | 300mm | 16mm | 45o Ø 38mm |
|
|
ERCOLE Water Tank 70L,w/o Cap,Str. Deck Filler Ø38mm,L.800mm | Without cap | 70lt | 800mm | 350mm | 300mm | 16mm | Straight Ø 38mm |
|
|
ERCOLE Water Tank 70L,w/o Cap, 45° Deck Filler Ø38mm,L.800mm | Without cap | 70lt | 800mm | 350mm | 300mm | 16mm | 45o Ø 38mm |
