Inspection Hatches
Inspection Hatches

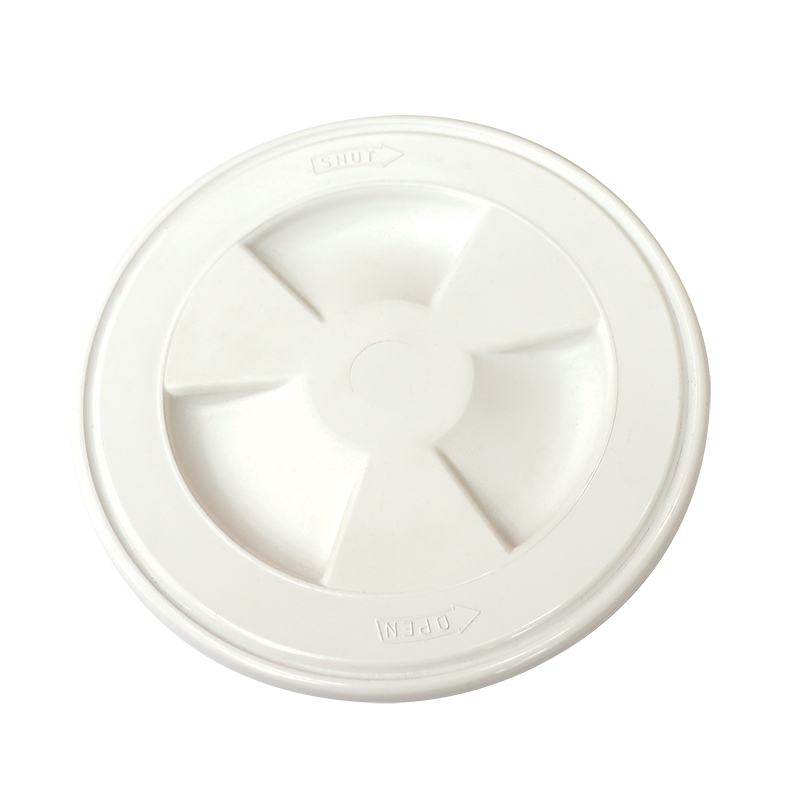

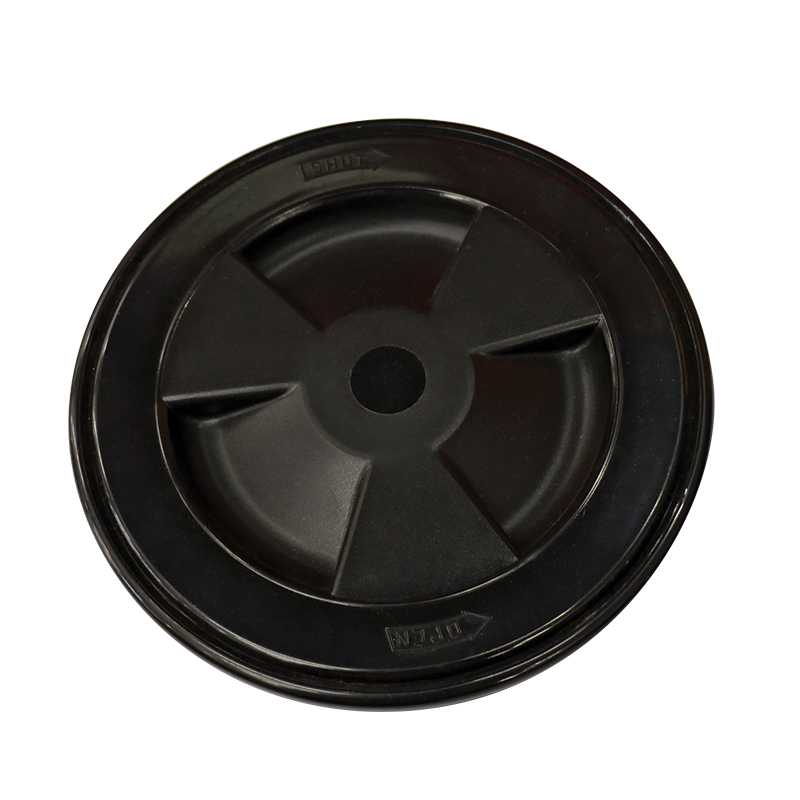

This Inspection Hatch is made of UV-resistant high-grade ASA in order to provide resistance to damage and chemical solvents. Available in many dimensions and a variety of colours (white, cream, black). It has no hinges, so that you can completely remove the cover. Its opening is easy, since the specially designed thread automatically ejects the cover, once you turn it 60ο counter clockwise and can be sealed with an O-ring that makes the hatch water resistant. Furthermore, it features non-skid surface and hidden screws for smarter appearance.
Designed & produced in Italy.
Use left and right arrow keys to navigate between tabs.
| Code | Description | Colour | C | A | B |
|---|---|---|---|---|---|
|
Inspection Hatch, Int.Ø104mm, White | White | 115mm | 104mm | 143mm |
|
Inspection Hatch, Int.Ø104mm, Black | Black | 115mm | 104mm | 143mm |
|
Inspection Hatch, Int.Ø130mm, White | White | 142mm | 130mm | 170mm |
|
Inspection Hatch, Int.Ø130mm, Black | Black | 142mm | 130mm | 170mm |
|
Inspection Hatch, Int.Ø155mm, White | White | 168mm | 155mm | 200mm |
|
Inspection Hatch, Int.Ø155mm, Black | Black | 168mm | 155mm | 200mm |
|
Inspection Hatch, Int.Ø104mm, Cream | Cream | 115mm | 104mm | 143mm |
|
Inspection Hatch, Int.Ø 130mm, Cream | Cream | 142mm | 130mm | 170mm |
|
Inspection Hatch, Int.Ø 155mm, Cream | Cream | 168mm | 155mm | 200mm |
